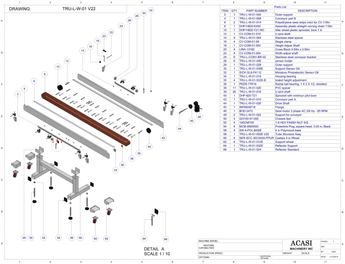

Wrap Around Labeler Model Tru-Labeler-W1 | Tube Structure & Conveyor

Item	Part No.	Part Name
2	TRU-L-W-01-040	Outer Support
4	TRU-L-W-01-008	Conveyor Part B
6	TRU-L-W-01-014	Polyethylene Wear Strips Color For CV 118 in
8	DHP-H820-K450	Assembly Plastic Straight Running Chain 118 in
10	DHP-H820-T21-NO	Idler Wheel Plastic Sprocket, bore 1 in
12	CV-COM-01-010	U Join Shaft
14	TRU-L-W-01-004	Stainless Steel Spacer
16	CV-COM-01-08	Single Clamp
18	CV-COM-01-002	Height Adjust Shaft
20	LINA-13182	Cross Block 0.50in x 0.50in

Item	Part No.	Part Name
22	CV-COM-01-004	Width Adjust Shaft
24	TRU-L-CONV-BR-02	Stainless Steel Conveyor Bracket
26	TRU-L-W-01-006	Sensor Holder
28	TRU-L-W-01-028	Outer Support
30	TRU-L-W-01-038E	Support Sensor G6
32	SICK GL6-P4112	Miniature Photoelectric Sensor G6
34	TRU-L-W-01-018	Bearing Housing
36	PEER-77R16	Radial Ball Bearing, 1 x 2 x 1/2, Shielded
38	TRU-L-W-01-020	PVC Spacer
39	TRU-L-W-01-016	U Joint Shaft
40	DHP-820-T21	Sprocket With Minimum Pilot Bore

Item	Part No.	Part Name
42	TRU-L-W-01-010	Conveyor Part A
44	TRU-L-W-01-026	Drive Shaft
45	INFM0387-B	Flange
46	BOD-2472	Gear-Motor 3 Phase AC 3/8 Hp - 85 RPM
48	TRU-L-W-01-022	Support For Conveyor
50	GI3100-01-090	Chassis Feet
52	100CNFHS	1-8 Hex Finish Nut S/S
54	MCM-9565K93	Protective Plug , Square Head, 3.00 in , Black
56	SW-4-POL-BASE	Polymount 4"
58	TRU-L-W-01-002E V22	Tube Structure Assy
60	SER-SCC-30CS420-PPUR	Caster 4in wheel
62	TRU-L-W-01-012E	Support Wheel
64	TRU-L-W-01-032E	Reflector Support
66	SICK 5304812	Reflector Standard
