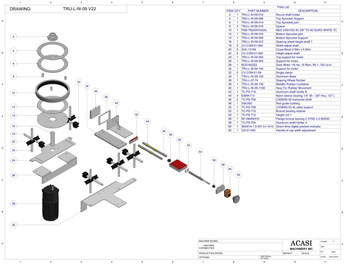

Wrap Around Labeler Model Tru-Labeler-W1 | Spacing Wheel


TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|ELECTRIC PANEL TOUCH | WRAP SYSTEM-BELT |WRAP SYSTEM- BOTTLE SUPPORT| SPACING WHEEL



Item Part No. Part Name Price
2 TRU-L-W-09-010 Round Shaft Holder
4 TRU-L-W-09-006 Top Sprocket Support
6
TRU-L-W-09-014 Top Sprocket Part
8 TRU-L-W-09-018 Spacer
10 FNS-TN240H100AJ 240H100, with 3/8"TH Duro White TC
12 TRU-L-W-09-016 Bottom Sprocket Part
14 TRU-L-W-09-008 Bottom Sprocket Support
16 TRU-L-W-09-012 Spacing Wheel Height Shaft 1
18 CV-COM-01-004 Width Adjust Shaft
20 LINA-13182 Cross block 1/2 in X 1/2 In
Item Part No. Part Name Price
22
CV-COM-01-002 Height Adjust Shaft
24
TRU-L-W-09-004 Top Support For Motor
26
TRU-L-W-09-002 Support For Motor
28
BOD-N2222 Gear Motor 1/6 HP, 19 RPM, 90:1, 120 Lb-in
30
TRU-L-W-09-104 Support For Motor
32
CV-COM-01-08 Single Clamp
34
TRU-L-W-09-102 Aluminum Base
36 TRU-L-07-74 Spacing Wheel Rubber
38 TRU-L-W-09-108 Metallic Rubber Container
40 TRU-L-W-09-110E Assy For Rubber Movement



Item Part No. Part Name Price
42
TC-PS-716 Aluminum Shaft Holder
44
IGU-JSI-0809-10 Nylon Sleeve Bearing 1/4" Sh-3/8" Hou, 1/2" L
46
TC-PS-706 CXSM20-50 Horizontal Shaft
48
556-060 Rod Guide Bushing
50
TC-PS-708 CXSM20-50 AL Plate Support
52
TC-PS-710 Bronze Bearing Retainer
54 TC-PS-712 Height Rod 1
56 M1-06454516 Flange Bronze Bearing 0.375ID x 0.500OD
58 TC-PS-704 Aluminum Shaft Holder A
60 SK0414-1.5-001.5-I-10-O Direct Drive Digital Position Indicator
62 CD-01-052 Handle of Cap Width Adjustment
