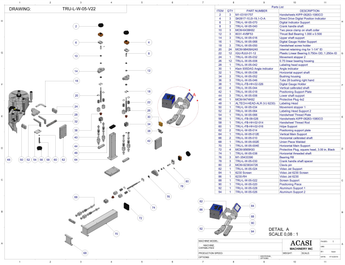

Wrap Around Labeler Model Tru-Labeler-W1 | Labeling Head System With Printer


TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|ELECTRIC PANEL TOUCH | WRAP SYSTEM-BELT |WRAP SYSTEM- BOTTLE SUPPORT| SPACING WHEEL



Item Part No. Part Name Price
2 M1-03181757 Solid handwheels, Hub diameter: 0.9800"
4 SK0917-10,0I-19,1-O-A Direct drive digital position indicator
6 TRU-L-W-05-070 Digital indicator Support
8 TRU-L-W-05-040 Crank Handle Shaft
10 MCM-6436K62 Two Piece Clamp on shaft collar
12 6031-4VBF53 Thrust Ball Bearing 1.000 x 0.500​
14 TRU-L-W-05-016 Upper Shaft Support
16 TRU-L-W-05-068 Digital Gauge Holder Support
18 TRU-L-W-05-050 Handwheel Screw Holder
20 MCM-98409A240 Internal retaining ring for 1-1/4" ID
Item Part No. Part Name Price
22
IGU-RJUI-01-12 Plastic Linear Bearing 0.750in OD, 1.250in ID
24
TRU-L-W-05-032 Movement Stopper 2
26
TRU-L-W-05-008 0.75 Linear Bearing Housing
28
TRU-L-W-05-042 Labeling Head Support
30
KLEIN 935DAG Angle indicator
32
TRU-L-W-05-036 Horizontal Support Shaft
34
TRU-L-W-05-052 Bushing Housing
36 TRU-L-W-05-046 Tube 28 Bushing Right Hand
38 TRU-L-FB-HH-02-026 Digital Gauge Holder
40
TRU-L-W-05-044 Vertical Calibrated Shaft
42
TRU-L-W-05-018 Positioning Support Plate



Item Part No. Part Name Price
44 TRU-L-W-05-006 Lower Shaft Support
46 MCM-9474K62 Protective Plug 4 x 2
48 ALTECH-HEAD-ALR (VJ6230) Labeling Head
50
TRU-L-W-05-034 Movement Stopper 1
52
TRU-L-W-05-064 Handwheel Thread Plate Support
54
TRU-L-W-05-066 Handwheel Thread Plate
56
TRU-L-FB-09-026 Handwheel KIPP-06263-1080CO
58
TRU-L-FB-HH-02-014 Handwheel Thread Rod
60
TRU-L-FB-HH-02-016 HDPE Support
62
TRU-L-W-05-014 Positioning Support Plate
64
TRU-L-W-05-012E Vertical Main Support
66
TRU-L-W-05-010 Horizontal Calibrated Shaft
68
TRU-L-W-05-002E Union Piece Welded
70
TRU-L-W-05-004E Horizontal Main Support



Item Part No. Part Name Price
72
MCM-9565K93 Protective Plug, Square Head, 3.00 in, Black
74
TRU-L-W-05-038 Horizontal Threaded Shaft
76
M1-35433390 Bearing R8
78
TRU-L-W-05-030 Crank Handle Shaft Spacer
80
MCM-92383A726 Clevis Pin
82
TRU-L-W-05-024 Video Jet Support
84
6230 Screen  Video Jet 6230 Screen
86
6230-RH Video Jet 6230
88
TRU-L-W-05-022 Screen Support
90 TRU-L-W-05-020 Positioning Piece
92
TRU-L-W-05-028 Aluminum Support 1
94
TRU-L-W-05-026 Aluminum Support 2
