Wrap Around Labeler Model Tru-Labeler-W1 | Electric Panel Touch
$ 0.00 USD
/

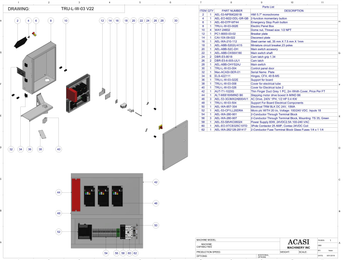

TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|ELECTRIC PANEL TOUCH | WRAP SYSTEM-BELT |WRAP SYSTEM- BOTTLE SUPPORT| SPACING WHEEL
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | AEL-53-NP5MQ001B | HMI 5.7" monochrome |  |
| 4 | AEL-EO-M22-DDL-GR-GB | 2-Fuction Momentary Button | |
| 6 | AEL-60-D7P-MT44 | Emergency Stop Push button | |
| 8 | TRU-L-W-03-002E | Electric Panel Box | |
| 10 | WAY-24602 | Dome Nut, Thread Size: 1/2 NPT | |
| 12 | PC1-8000-03-02 | Breaker Plate | |
| 14 | CAI-10X-09-022 | Disconnect Plate | |
| 16 | AEL-WA-210-112 | Steel Carrier Rail, 35mm x 7.5mm x 1mm | |
| 18 | AEL-ABB-S202U-K15 | Miniature Circuit | |
| 20 | AEL-ABB-S2C-DH | Main Switch Accessory | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 22 |
AEL-ABB-OXS6X180 | Main Switch Shaft | |
| 24 |
DBR-E5-8018 | Cam Latch Grip 1.34 | |
| 26 |
DBR-E5-6-005-UU1 | Cam Latch | |
| 28 |
AEL-ABB-OHYS2AJ | Main Switch | |
| 30 |
TRU-L-W-03-004 | Control Panel Door | |
| 32 |
MAC-ACASI-SER-01 | Serial Name Plate | |
| 34 |
ELS-422111 | Hinges, CFA. 49 B-M5 | |
| 36 | TRU-L-W-03-022E | Support For Board | |
| 38 | TRU-L-W-03-008 | Cover For Electrical Tube | |
| 40 |
TRU-L-W-03-026 | Cover For Electrical Tube 2 | |
| 42 |
AUT-T1-1020G | Thin Finger Duct Grey 1 PC, 2M With Cover, Price Per Ft | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 44 | ALT-M0818XMIND B6 | Stepping Motor Drive Boxed X-MIND B6 | |
| 46 | AEL-53-3G3MX2AB004V1 | AC Drive, 240 V 1PH, 1/2HP 0.4 KW | |
| 48 | TRU-L-W-03-504 | Support For Board Electrical Components | |
| 50 |
AEL-WA-857-304 | Electrical TRM BLK DC 24V, 10 MA | |
| 52 |
AEL-53-CP1LL20DRA | Micro PLC With 20 I/O , Voltage: 100/240 VDC. Imputs 18 | |
| 54 |
AEL-WA-280-901 | 2-conductor through terminal block | |
| 56 |
AEL-WA-280-907 | 2-conductor through terminal block, Mounting: TS 35, Green | |
| 58 |
AEL-53-S8VKC06024 | Power Supply 60W. 24 VDC 2.5A 100-240VAC | |
| 60 |
AEL-EO-XTCE025C10TD | 3 Pole contactor 25 AMP, Contac 24VDC coil | |
| 62 |
AEL-WA-282128-281417 | 2-Conductor Fuse Terminal Block Glass Fuses 1/4 x 1 1/4 | |
