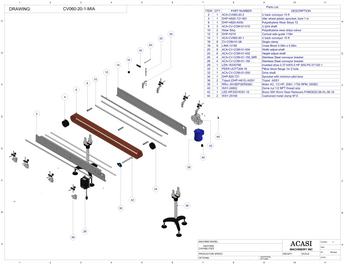

Straight Conveyors 6 feet

Request a Quote

6 feet | 10 feet | 13 feet | 16 feet | 20 feet

Item	Part No.	Part Name	Price
2	CV060-20-2	U Back Conveyor 6 ft
4	DHP-H820-T21-NO	Idler Plastic Sprocket, Bore 1 in
6	DHP-H820-K450	Assembly Plastic Straight Running Chain 72in
8	CV-COM-01-010	U Join Shaft
10	DHP-Wear Strip	Polyethylene Wear Strips 72
12	DHP-H219	Conical Side Guide 72
14	CV060-20-1	U Back Conveyor 6 Ft
16	CV-COM-01-08	Sigle Clamp
18	LINA-13182	Cross Block 0.50in x 0.50in

Item	Part No.	Part Name	Price
20	CV-COM-01-004	Width Adjust Shaft
22	CV-COM-01-002	Height Adjust Shaft
24	CV-COM-01-150_MIR	Stainless Steel Conveyor Bracket
26	CV-COM-01-150	Stainless Steel Conveyor Bracket
28	LEN-16330798	Inverted Drive 0.37 KW/0.5 HP i550-P0.37/120-1
30	PEER-UCFT205-16	Pillow Block Flange 1in 2 Hole
32	CV-COM-01-050	Drive Shaft
34	DHP-820-T21	Sprocket With Minimum Pilot Bore
36	Tripod (DHP-H615) ASSY	Tripod Assy
38	RRU-.5018EP3ERS56C	Motor AC, 1/2 HP, 208-230/460 V 1800 RPM SS56C
40	WAY-24602	Dome Nut 1/2 NPT Thread Size
42	LEE-WF20016301.16	Bravo 500 Worm Gear Reducers FHMQ520-26-HL-56-16
44	WAY-25106	Cushioned Metal Clamp N. 6
