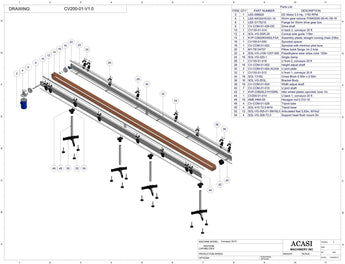

Straight Conveyors 20 feet


10 feet | 13 feet | 16 feet | 20 feet

Item Part No. Part Name Price
1

CV130-01-012

U front 1, conveyor 20 ft
2 SLI-11957 Conical side guide 118in
4 KVP-C0820L21H100RL Idler wheel plastic sprocket, bore 1in
8 SOL-VG-J100-125T-500 Polyethylene wear strips colour 90in
10 CV200-01-014 U back 1, conveyor 20 ft
12 LEE-WF20016301.16 Worm gear reducer FHMQ520-26-HL-56-16
14 LEE-101769.00 Motor AC, 1/3 HP, 208V, 1750 RPM, SS56C
16 CV-COM-01-050 Drive shaft
Item Part No. Part Name Price
18 CV130-01-014 U back 2, conveyor 20ft
19 CV-COM-01-060 Universal union for conveyor
20 CV-COM-01-022 Sprocket with minimun pilot bore
22 CV-COM-01-010 U joint shaft
24 KVP-C0820K0450LFAA Assembly plastic straight running chain 20 FT
26 PEER-UCFT205-16 Pillow bolck flange 1in 2 hole
28 CV130-01-018 U front 2, conveyor 20 ft
30 CV-COM-01-040 Support head flush bracket
Item Part No. Part Name Price
32 ELS-419773 Support head flush mount 2in
34 CV-COM-01-028 Tripod tube
36 ELS-419595 Tripod base
38 ELS-ST-0000EN569/0 Articulated feet 5,93in, M16x2
40 ELS-SPR.B Bracket Body
42 CV-COM-01-004 Width adjust shaft
44 LINA-13182 Cross Block 0.50in x 0.50in
46 CV-COM-01-002 Height adjust shaft
48 CV-COM-01-08 Single clamp
50 ELS-419677 Spacer for guide rail bracket (optional)
