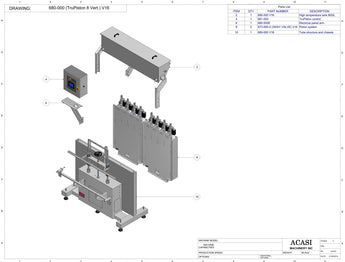

Piston Filler -Trupiston-8 | FILLER & CHASSIS


TUBE STRUCTURE & CHASSIS | PISTON & MOVEMENT SYSTEM

ELECTRIC PANEL TOUCH | ESTANDAR TANK

Item Part No. Part Name Price
2

GI3100-01-002

Top support part

4 M1-82503343

Handle 7in Round

6 GI3300-01-020 Nozzle height threaded rod
8 GI3300-01-010 Height nut2
10 AEL-E2A-M12KS04-WPB1 Height proximity sensor
12 GI3100-01-004 Scaled height guide
14 GI3100-01-013 Sensor movement top
16 GI3100-01-022 Bottom bumper 4
Item Part No. Part Name Price
18 GI3100-01-006

Calibrated shafts

20 GI3300-01-008

Top bumper

22 GI3300-01-019 Bottom bumper 3
24 GI3300-01-012 Movement top
26 GI3300-01-017 Bottom movement stop
28 GI3300-01-014 Main bar
30 GI3300-01-015 Bottom bumper 1
32 GI3300-01-026 Nozzle holding bar
Item Part No. Part Name Price
34

GI3300-01-038

Radial shaft seal housing

36

GI3300-01-016

1.25 linear bearing housing

38

SKF-M/5201522

Linear bearing 0.75in OD, 1.25in ID
40 M1-36677029 Radial shaft seal 1x1.5x0.25
42 GI3300-01-034-1 Calibrated shafts bottom hold
44 662-160-8 Nozzle holding square tube
46 680-008E V16

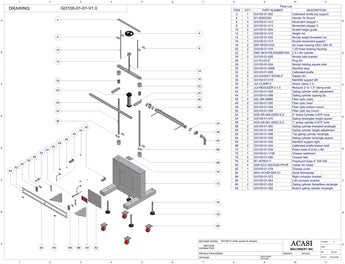

Tube structure and chasis

Item Part No. Part Name Price
48 680-034-2



50 GI3300-01-068

Gating cylinder spacing tip

52 PU7000-01-036 Gating L 2
54 Bimba-SR-122-D1
56 PU7000-01-038 Gating L 1
58 HPE-AS3201FN0307SX35 Inline flow control, panel mount 12mm
60 680-040
62 610-240 Left conveyor bracket
Item Part No. Part Name Price
64 MAC-ACASI-SER-01

Serial nameplate

66 Bimba-SR-125-D1



68 610-350

Motor base plate

70 ADA-922B-RA

Valve Mac 922B-RA

72 FES-159582 Air filter festo lfr 0.125 serie d
74 LEE-115828 2 hp motor, 1725 rpm, 3 phase, 220v
76

APL-MART 16H100

Timing pulley 0.5 pitch, 16 grooves

Item

Part No. Part Name Price
78

M1-35394899

Timing belt, 60 teeth, pitch 0.5in

80 SMC-NCAY5EO006B1000

Air cylinder 2.5 bore, 10 in stroke

82 680-004 Gating tube 1
84 610-250 Right conveyor bracket
86 GI3100-01-090 Chasis feet
88 GI3300-01-070 Gating rectangles height spacer
90 671-014 Chasis cover
92 610-340 Motor support separator
94 M1-45763711 Polymount base 4" SW QA
