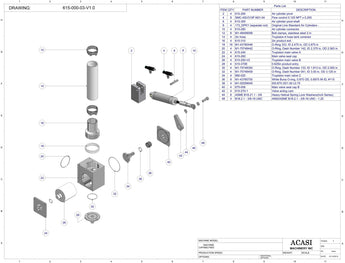

Piston Filler - Model Trupiston-4-Hor Piston & Valve System (615-000-03-V1.0)


TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH TANKS

_______________________________________________

615-000-01-V2.1 | 615-000-03-V1.0

Item Part No. Part name Price
2 615-290 Air cylinder pivot
4 SMC-ASV310F-N01-04 Flow control 0.125 NPT x 0.250
6 615-300 Air cylinder pivot shaft
8 173_DPKY Original line standar air cylinder
10 615-280 Air cylinder connector
12 M1-48499099 Bolt camps, stainless steel 2 in
14 2in hose Trupiston-4 hose tank connector

Item Part No. Part name Price
16 615-310 2in product exit
18 M1-43760446 O-Ring 333, ID 2.475 in, OD 2.563 in
20 M1-75748442 O-Ring, Dash number 142, ID 2.375, OD 2.563
22 615-240 Trupiston main seal cap
24 615-260 Main valve seal cap
26 615-250-V2 Trupiston main valve B
28 615-370E 0.625in product entry
Item Part No. Part name Price
30 M1-75748350 O-Ring, Dash number 133, ID 1.813 in, OD 2.000 in
32 M1-75748459 O-Ring, Dash number 041, ID 3.000 in, OD 3.125 in
34 890-020 Trupiston main valve C
36 M1-43760750 White Buna O-Ring, 0.875 OD, 0.6875 IN ID, #115
38 M1-02559045 ID 0.875, OD 1.000, L 0.750
40 675-006 Main valve seal cap B
42 615-270-1 Valve acting cam
44 ASME B18.21.1 - 3/8 Heavy Helical Spring Lock Washers
46 M1-35397843 Rod end bearings, female, 0.375 in shaft
48 ASME B18.2.1 3/8-16 UNC - 1.25
