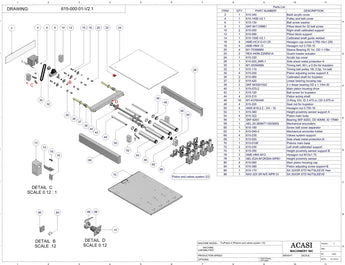

Piston Filler - Model Trupiston-4-Hor Piston & Valve System (615-000-01-V2.1)

Request a Quote

TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH | TANKS

_______________________________________________

615-000-01-V2.1 | 615-000-03-V1.0

Item	Part No.	Part Name	Price
2	615-340	Back acrylic cover
4	615-140E-V2.1	Pulley and belt cover
6	615-130	Ball screw washer
8	SKF-M/1129961	Pillow block for 32 ball screw
10	615-050	Right shaft calibrated support
12	615-090	Pillow block support
14	615-100E-V2.1	Calibrated shaft guide welded

Item	Part No.	Part Name	Price
16	AME-HCX12-01.25	Hexagon cap screw 0.750-10x1.250
18	AME-HNX-12	Hexagon nut 0.750-10
20	M1-75368860	Sleeve bearing ID 1in; OD 1-1/8in
22	REX-440N-Z2NRS1A	Guard master actuatos
24	615-330	Acrylic top cover
26	615-020_MIR-1	Side sheet metal protection A
28	M1-3594899	Timing belt, 60t, p 0.5in for trupiston

Item	Part No.	Part Name	Price
30	615-110	Timing belt pulley 16t, 0.5p, 1 in belt
32	615-200	Piston adjusting screw support A
34	615-060	Calibrated shaft for trupiston
36	615-420	Linear bearing housing cap
38	SKF-M/5201522	2 in linear bearing OD x 1 1/4in ID
40	615-070-2	Main piston housing drive
42	615-120	Ball screw for trupiston

Item	Part No.	Part Name	Price
44	615-210	Piston acting shaft
46	M1-43760446	O-Ring 333, ID 2.475 in, OD 2.875 in
48	615-220	Seal rod for trupiston
50	ANSI B18.2.2 - 3/4 - 16	Hexagon nut 0.750-16
52	615-360	Height proximity sensor support A
54	615-322	Piston main body
56	SKF-6203	Bearing SKF-6203, OD 40MM, ID 17MM

Item	Part No.	Part Name	Price
58	AEL-25-260NT11S0360Q	Mechanical encoders
60	615-190	Screw ball cover separator
62	610-040-3	Mechanical encoders holder
64	615-230	Valves system support
66	615-020	Side sheet metal protection B
68	615-010E	Pistons main base
70	615-030	Left shaft calibrated support

Item	Part No.	Part Name	Price
72	615-350	Height proximity sensor support B
74	AME-HNX-M12	Hexagon nut M12x1.75
76	AEL-E2A-M12KS04-WPB1	Height proximity sensor
78	615-080	Main piston housing cap
80	615-380	Piston adjusting screw support B
82	615-170	SX 32X5R STD NUTSLEEVE fixer
