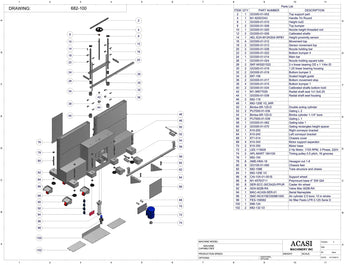

Piston Filler Trupiston-12-Vert | Tube Structure & Chassis



TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH | TANK

Item Part No. Part Name Price
2 GI3300-01-002

Top support part

4 ELS-77511

Handle 7in Round

6 GI3300-01-010 Height nut2
8 GI3300-01-008 Top bumper
10 GI3300-01-020 Nozzle height threaded rod
12 SKF-LJXR 20X36 ESSC2 Calibrated shafts
14 AEL-E2A-M12KS04-WPB1 Height proximity sensor
Item Part No. Part Name Price
16 GI3300-01-012

Movement top

18 GI3300-01-013

Sensor movement top

20 GI3300-01-026 Nozzle holding bar
22 SKF-M/5201522 2 n linear bearing OD x 1 1/4in ID
24 GI3300-01-014 Main bar
26 GI3300-01-016 1.25 linear bearing housing
28 GI3300-01-026 Nozzle holding bar
30 GI3100-01-004 Scaled height guide
32 SKF-LJXR 20X36 ESSC2 Calibrated shafts
Item Part No. Part Name Price
34

610-290

Nozzle holding square tube

36

GI3300-01-020

Nozzle height threaded rod

38

GI3300-01-034

Calibrated shafts bottom hold
40

610-280

Main trupiston base
42 GI3300-01-038 Radial shaft seal housing
44 610-330 Right cover sheet
46 610-320 Back cover sheet
48 610-360

Tank support separator

Item Part No. Part Name Price
50 610-310 Front cover sheet
52 610-260

Gating tube 1

54 610-030E Tube structure and chasis
56 GI3300-01-070 Gating rectangles height spacer
58 610-250 Right conveyor bracket
60 610-300 Left cover sheet
62 PU7000-01-038 Gating L 1
64 PU7000-01-036 Gating L 2
Item Part No. Part Name Price
66 610-340

Motor support separator

68 610-350

Motor base

70 610-270

Chassis feet

72 MAC-ACASI-SER-01

Serial Nameplate

76 GI3100-01-078 Chassis cover
76 610-240 Left conveyor bracket
78

APL-MART 16H100

Timing pulley 0.5 pitch, 16 grooves
80

AME-HNX-16

Hexagon nut 1-8
Item Part No. Part Name Price
82

HPE-AS3201FN0307SX35

Inline flow control, panel mount 12mm

84 GI3300-01-068

Gating cylinder width adjustment

88 ADA-SR-122-D Bimba cylinder 1-1/4" bore
90 Bimba-SR-125-D Double acting cylinder
92 LEE-120923.00 2 Hp Motor, 1725 RPM, 3 Phase, 220V
94 SW-3-POL-BASE Poly mount base 3 1-8
96 ADA-922B-RA Valve Mac 922B-RA
98 FES-159582 Air fliter Festo LFR 0.125 Serie D
100 SMC-NCAY5EO006B1000 Air cylinder 2.5 bore, 10 in stroke
51 M1-36677029

Radial shaft seal 1x1.5x0.25
