Piston Filler - Model Trupiston 8 SERVO | TANK HEATED-AGITATION

Request a Quote

PISTON & VALVE SYSTEM | TUBE STRUCTURE & CHASSIS

SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |

STANDARD TANK | TANK HEATED-AGITATION |

TANK WITH BLENDER TROWEL

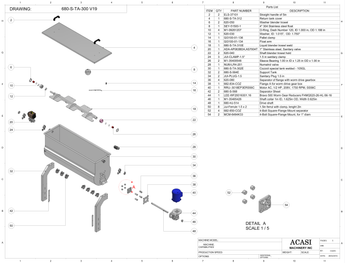

Item	Part No.	Part Name	Price
2	ELS-37101	Straight Handle of 5in
4	680-S-TA-312	Return Tank Cover
6	620-050	Washer Blender Trowel
8	SEY-51500-1	4" 304 Stainless Steel Float
10	M1-09261207	O-Ring, Dash Number 120 ID 1.000in OD 1.188in
12	620-030	Washer, ID: 1.015", OD: 1.750"
14	GI3100-01-136	Pallet Clamp
16	GI3100-01-134	Float Arm
18	680-S-TA-310E	Liquid Blender Trowel Weld
20	ADA-AP063BDA,AS7004T	1" Stainless Steel, Sanitary Valve
22	620-040	Shaft Blender Trowel Hold
24	JUI-CLAMP-1.5"	1.5 Sanitary Clamp

Item	Part No.	Part Name	Price
26	M1-35400548	Sleeve Bearing 1.00 in ID x 1.25 in OD X 1.00 in
28	NUM-LR4-201	Numatrol Valve
30	680-S-TA-302E	Cazzoli Special Tank Welded-105GL
32	680-S-564E	Support Tank
34	JUI-PLUG-1.5	Sanitary Plug 1.5 in
36	620-080	Separator of Flange With Worm Drive Gearbox
38	682-834-COZ	Flange A for Worm Drive Gear Box
40	RRU-.5018EP3ERS56C	Motor 1/2 HP,1.750 RPM, 208VM SS56C
42	680-S-568	Separator Sheet
44	LEE-WF20016301.16	Bravo 500 Worm Gear Reducers FHMQ520-26-HL-56-16
46	M1-35465426	Shaft Collar 1in ID, 1.625in OD, Width 0.625in
48	680-HJ-514	Drive Shaft
50	JUI-Ferrule 1.5 x 2	1.5in Ferrul With Clamp, Length 2in
52	682-850-COZ	4-Bolt Square-Flange Mount Separator
54	MCM-6494K33	4-Bolt Square-Flange Mount, For 1"OD
