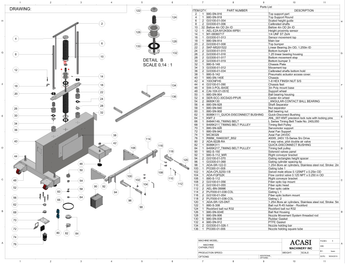

Piston Filler - Model Trupiston 8 SERVO | SERVO NOZZLE MOVEMENT

PISTON & VALVE SYSTEM | TUBE STRUCTURE & CHASSIS

SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |

STANDARD TANK | TANK HEATED-AGITATION |

TANK WITH BLENDER TROWEL

_______________________________________________

IBSO STANDARD NOZZLES

Standard Nozzle 0.250in                  Standard Nozzle 0.375in

Standard Nozzle 0.500in                  Standard Nozzle 0.625in

Standard Nozzle 0.750in                  Standard Nozzle 1.000in

Standard Nozzle 1.250in                  Standard Nozzle 1.500in

___________________________________________________

IBSO BOTTOM UP NOZZLES

Bottom Up Nozzle 0.250in                Bottom Up Nozzle 0.375in

Bottom Up Nozzle 0.500in                Bottom Up Nozzle 0.625in

Bottom Up Nozzle 0.750in                Bottom Up Nozzle 1.000in

_______________________________________________

Item	Part No.	Part Name	Price
2	680-SN-916	Top Support Part
4	680-SN-918	Top Support Round
6	GI3100-01-004	Scaled Height Round
8	GI3300-01-006	Calibrated Shafts
10	CQM-43912	Bellow 4in OD 2in ID
12	AEL-E2A-M12KS04-WPB1	Height Proximity Sensor
14	M1-08060717	1/4 UNF ST Zerk
16	GI3300-01-013	Sensor Movement Top

Item	Part No.	Part Name	Price
18	680-SN-914	Main Bar
20	GI3300-01-008	Top Bumper
22	SKF-M5201522	Linear Bearing 2in OD, 1.250in ID
24	GI3300-01-015	Bottom Bumper 1
26	GI3300-01-016	1.25 Linear Bearing Housing
28	GI3300-01-017	Bottom Movement Stop
30	GI3300-01-019	Bottom Bumper 3
32	680-S-148	Chassis Plate

Item	Part No.	Part Name	Price
34	GI3300-01-012	Movement Top
36	GI3300-01-034	Calibrated Shaft Bottom Hold
38	680-S-142	Pneumatic Actuator Access Cover
40	680-SN-140E	Chassis
42	100CNFHS	1-8 HEX FINISH NUT S/S
44	GI3100-01-090	Chassis Feet
46	SW-3-POL-BASE	3in Poly Mount Base
48	CAI-10X-01-051E	Support Wheel

Item	Part No.	Part Name	Price
50	680-SN-904	Ball bearing Housing
52	SER-SCC-30CS420-PPUR	Caster 4in Wheel
54	MCM-6680K130	Angular-Contact Ball Bearing
56	680-SN-928	Shaft Separator
58	680-SN-940	Nut Separator
60	680-SN-908	Ball Bearing Nut
62	MCM-6086K111	Quick Disconnect Bushing
64	KMT 2	ANL_007-KMT Precision Lock Nuts With Locking Pins

Item	Part No.	Part Name	Price
66	MCM-6484K149	L Series Timing Belt Trade No. 240L050
68	MCM-6495K211	Timing Belt Pulley
70	680-SN-926	Servomotor Support
72	680-SN-942	Axial Fan Support
74	NEW-23T0657	Axial Fan 24 VDC
76	AEL-53-R88D1SN04HECT	Servo Motor 1S Series
80	ADA-922B-RA	4 Way Valve, Pilot Double Air Valve
82	MCM-6086K311	Quick Disconnect Bushing

Item	Part No.	Part Name	Price
84	MCM-6495K217	Timing Belt Pulley
90	682-S-150	Solenoid Valves Panel
92	680-S-112_MIR	Left Conveyor Bracket
94	GI3100-01-070	Gating Rectangles Height Spacer
96	GI3100-01-068	Gating Cylinder Spacing Tip
98	ADA-SR-122-D	1.25in Bore Air Cylinders, Stainless Steel Rod, Stroke: 2in
100	PI3300-01-008	Gating Tube 1

Item	Part No.	Part Name	Price
102	ADA-CPLS250-1/8	Swivel Male Elbow 0.125NPT x 0.25in OD
104	ADA-FQP2SK	Flow Control Valve 0.125NPT x 0.250in OD
106	680-S-112	Right Conveyor Bracket
108	GI3100-01-056	Fiber Optic Top Mount
110	GI3100-01-055	Fiber Optic Top Head
112	AEL-BN-39996	Fiber Optic Cable
114	PU7000-01-038-COL	Gating L 1
116	GI3100-01-054	Fiber Optic Bottom Mount

Item	Part No.	Part Name	Price
118	PU7000-01-036-COL	Gating L 2
120	ADA-SR-125-DNT	1.25 Bore Air Cylinders, Stainless Steel Rod, Stroke: 5in
122	680-S-308	Ball Nut R-45 Holder- Rockford
124	ROC-R34-2	Rockford Ball Nut R34-2
126	680-SN-934E	Ball Nut Housing
128	680-SN-906	Nozzle Movement System Threaded Rod
130	680-SN-938	Rubber Gasket
132	680-SN-912	Gasket Support
134	GI300-01-026-1	Nozzle Holding Bar
136	PI3300-01-006	Nozzle Holding Square Tube
