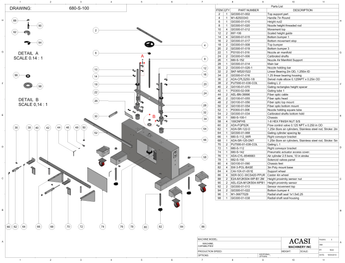

Piston Filler - Model Trupiston 8 SERVO | TUBE STRUCTURE & CHASSIS

PISTON & VALVE SYSTEM | TUBE STRUCTURE & CHASSIS

SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |

STANDARD TANK | TANK HEATED-AGITATION |

TANK WITH BLENDER TROWEL

_______________________________________________

IBSO STANDARD NOZZLES

Standard Nozzle 0.250in                  Standard Nozzle 0.375in

Standard Nozzle 0.500in                  Standard Nozzle 0.625in

Standard Nozzle 0.750in                  Standard Nozzle 1.000in

Standard Nozzle 1.250in                  Standard Nozzle 1.500in

___________________________________________________

IBSO BOTTOM UP NOZZLES

Bottom Up Nozzle 0.250in                Bottom Up Nozzle 0.375in

Bottom Up Nozzle 0.500in                Bottom Up Nozzle 0.625in

Bottom Up Nozzle 0.750in                Bottom Up Nozzle 1.000in

_______________________________________________

Item	Part No.	Part Name	Price
2	GI3300-01-002	Top Support Art
4	M1-82503343	Handle 7in Round
6	GI3300-01-010	Hight Nut 2
8	GI3300-01-020	Nozzle Height Threaded Rod
10	GI3300-01-012	Movement Top
12	697-106	Scaled Height Guide
14	GI3300-01-015	Bottom Bumper 1
16	GI3300-01-017	Bottom Movement Stop

Item	Part No.	Part Name	Price
18	GI3300-01-008	Top Bumper
20	GI3300-01-019	Bottom Bumper 3
22	PI3100-01-016	Nozzle Air Manifold
24	GI3300-01-006	Calibrated Shaft
26	680-S-152	Nozzle Air Manifold Support
28	GI3300-01-014	Main Bar
30	GI3300-01-026-1	Nozzle Holding Bar
32	SKF-M5201522	Linear Bearing 2in OD, 1.250in ID

Item	Part No.	Part Name	Price
34	GI3300-01-016	1.25 Linear Bearing Housing
36	ADA-CPLS250-1/8	Swivel Male Elbow 0.125NPT x 0.25in OD
38	PU7000-01-036-COL	Gating L 2
40	GI3100-01-070	Gating Rectangles Height Spacer
42	PI3300-02-008	Gating Tube 1
44	AEL-BN-39996	Fiber Optic Cable
46	GI3100-01-055	Fiber Optic Head
48	GI3100-01-056	Fiber Optic Top Mound

Item	Part No.	Part Name	Price
50	GI3100-01-054	Fiber Optic Bottom Mound
52	PI3300-01-006	Nozzle Holding Square Tube
54	GI3300-01-034	Calibrated Shaft Bottom Hold
56	680-S-140E	Chassis
58	100CNFHS	1-8 HEX FINISH NUT S/S
60	ADA-FQPS2K	Flow Control Valve 0.125 NPT x 0.250in OD
62	ADA-SR-122-D	1.25 Bore Air Cylinders, Stainless Steel Rod, Stroke: 2in
64	GI3300-01-068	Gating Cilinder Spacing Tip

Item	Part No.	Part Name	Price
66	680-S-112_MIR	Left Conveyor Bracket
68	ADA-SR-125-DNT	1.25 Bore Air Cylinders, Stainless Steel Rod, Stroke: 5in
70	PU7000-01-038-COL	Gating L 1
72	680-S-112	Right Conveyor Bracket
74	680-S-142	Pneumatic Actuator Access Cover
76	ADA-CYL-8546683	Air Cylinder 2.5 Bore, 10 in Stroke
78	682-S-150	Solenoid Valves Panel
80	GI3100-01-090	Chassis Feet

Item	Part No.	Part Name	Price
82	SW-3-POL-BASE	3in Poly Mount Base
84	CAI-10X-01-051E	Support Wheel
86	SER-SCC-30-CS420-PPUR	Caster 4in Wheel
88	E2A-M12KS04-WP-B1-2M	Height Proximity Sensor Nut
90	AEL-E2A-M12KS04-WPB1	Height Proximity Sensor
92	GI3300-01-013	Sensor Movement Top
94	GI3300-01-022	Bottom Bumper 4
96	M1-36677029	Radial Shaft Seal 1 x 1.5 x 0.25
98	GI3300-01-038	Radial Shaft Seal Housing
