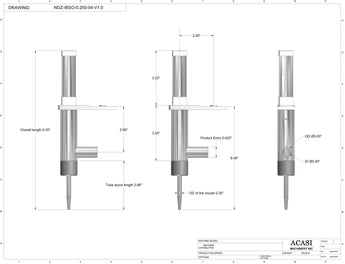

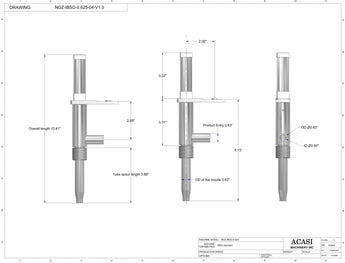

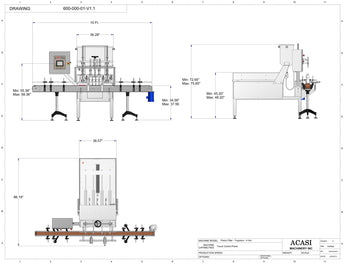

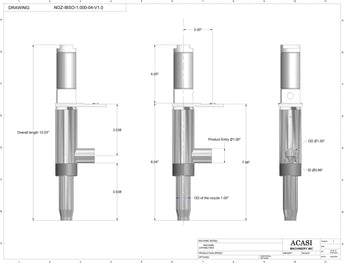

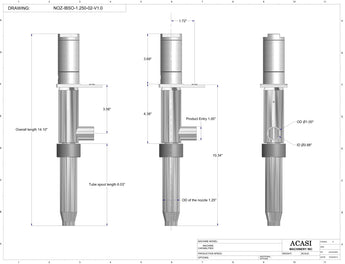

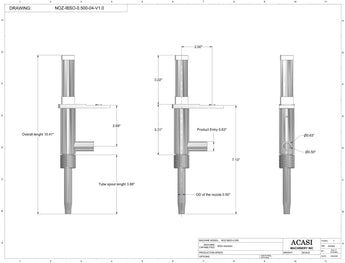

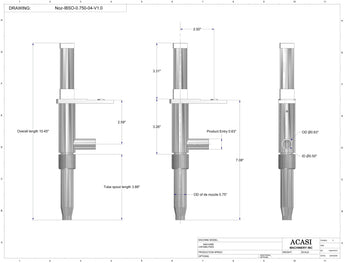

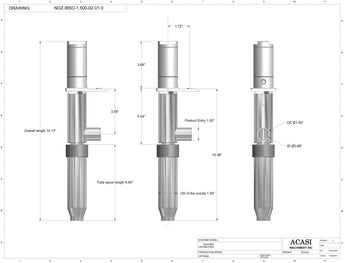

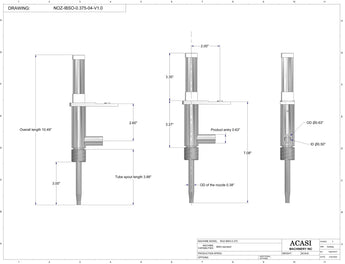

Piston Filler - Model Trupiston-4-Hor Drawings


ACASI Model TruPiston-4 Piston Filler

Construction features:

  • High-precision, electrically-driven ball screw movement, faster and more precise than pneumatic or air over oil systems.
  • Fill and charge speeds can be better controlled and changes performed at any point of the stroke (i.e., to reduce speed at the end of a fill cycle to avoid splashing).
  • Handles a wide variety of products and product viscosities.
  • Capable of handling breakable particulates up to ¾" diameter.
  • Reservoir tank mounted directly above rotary valves for direct product feed.
  • Heavy duty 304 stainless steel welded frame construction.
  • FDA approved metallic rotary valves.
  • Minimal air consumption.
  • All contact parts are stainless steel, sanitary, Teflon, Buna and Viton.

Control panel features:

  • Omron PLC for all machine logic functions.
  • AC variable speed control.
  • Front panel mounted bottle counter.
  • Front panel Start and E-STOP for easy access.
  • Fiber optic sensors by Omron standard for container gating.
  • No bottle/no fill PLC controlled.

Standard features:

  • Nozzle spacing fully adjustable.
  • Container height adjustment.
  • Nozzle stroke adjustments.
  • Adjustable entry and exit bottle gating cylinders.
  • Works with plastic or glass containers.
  • No change parts needed for various types of containers.
  • Pistons and fill nozzles available in various sizes.
  • Optional sanitary pistons and fittings.

Electric and pneumatic requirements:

  • 220 Volts, 60Hz, 15 Amps.
  • 5 CFM @ 80 psi.
