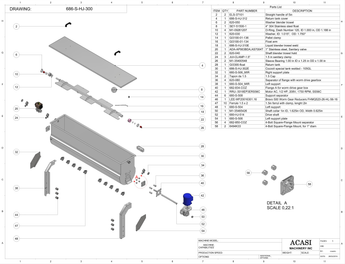

Piston Filler - Model Trupiston 10 GL SERVO | HEATED JACKET TANK PLUS BLENDER TROWEL

Request a Quote

PISTON & VALVE SYSTEM | TUBE ESTRUCTURE & CHASSIS

SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |

STANDARD TANK | HEATED JACKET TANK PLUS BLENDER TROWEL

Item	Part No.	Part Name	Price
2	ELS-37101	Straight Handle of 5in
4	686-S-HJ-312	Return Tank Cover
6	620-050	Washer Blender Trowel
8	SEY-51500-1	4" 304 Stainless Steel Float
10	M1-09261207	O-Ring, Dash Number 120 ID 1.000in OD 1.188in
12	620-030	Washer, ID: 1.015", OD: 1.750"
14	GI3100-01-136	Pallet Clamp
16	GI3100-01-134	Float Arm
18	686-S-HJ-310E	Liquid Blender Trowel Weld
20	ADA-AP063BDA,AS7004T	1" Stainless Steel, Sanitary Valve
22	620-040	Shaft Blender Trowel Hold
24	JUI-CLAMP-1.5"	1.5 Sanitary Clamp

Item	Part No.	Part Name	Price
26	M1-35400548	Sleeve Bearing 1.00 in ID x 1.25 in OD X 1.00 in
28	GI3300-Float	Level Tank Valve
30	686-S-HJ-302E	Cazzoli Special Tank Welded
32	680-S-506_MIR	Right Support Plate
34	JUI-PLUG-1.5	Sanitary Plug 1.5 in
36	620-080	Separator of Flange With Worm Drive Gearbox
38	680-S-504_MIR	Left Support
40	682-834-COZ	Flange A For Worm Drive Gear Box
42	RRU-.5018EP3ERS56C	Motor AC, 1/2 HP, 208V, 1750 RPM, SS56C
44	680-S-508	Support Separator
46	LEE-WF20016301.16	Bravo 500 Worm Gear Reducers FHMQ520-26-HL-56-16
47	JUI-FERRULE 1.5x2	1.5in Ferrul With Clamp, Length 2in

Item	Part No.	Part Name	Price
48	680-S-504	Right Support
50	M1-35465426	Shaft Collar 1in ID, 1.625in OD, Width 0.625in
52	680-HJ-514	Drive Shaft
54	680-S-506	Left Support Plate
56	682-850-COZ	4-Bolt Square-Flange Mount Separator
58	MCM-6494K33	4-Bolt Square-Flange Mount, For 1"OD
