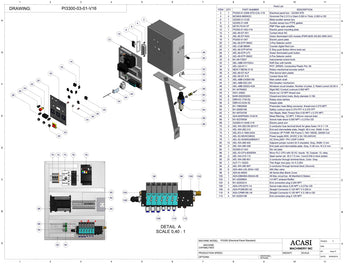

Piston Bottle Filler PI3300 | Electric Panel Standard

Request a Quote

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL STANDARD | TANKS | ACCESORIES | PISTONS

Item	Part No.	Part Name	Price
2	PI3300-01-030E-STD-COL-V16	Eectric panel box - GI3300 STD
4	MCMAS-9600K23	Grommet Fits 0.313 in Diam 0.093 in Thick, 0.500 in OD
6	GI3300-21-012E	Metal auxiliar sensor box
8	GI3300-21-008	Auxiliar sensor box PTFE gasket
10	KEYE-FS-N11P	PNP Fiber optic amplifier
12	PI3300-01-042-V16	Electric panel mounting plate
14	AEL-60-D7-X01	Contact block NC
16	AEL-60-D7-N3G	Green iluminated LED module (PWR MOD W/LED GRN 24V)

Item	Part No.	Part Name	Price
18	PI3300-01-007	Electric panel plate
20	AEL-60-D7P-SM23	3-Pos Selector switch
22	AEL-CUB-5B000	Counter digital Red Lion
24	AEL-60-D7P-MT44	E Stop push Button 40mm twist red
26	AEL-60-D7P-LF3	Green iluminated push buttom
28	AEL-60-D7P-SM22	2-Pos Selector switch
30	M1-06172837	Instrumental control knob
32	AEL-ABB-OHYS2AJ	N3R Disc with handle

Item	Part No.	Part Name	Price
34	AEL-QQ-9111	POT, SPEED, Conductive Plastic Pot, 5K
36	NEW-71DB36-3119	Rotary mechanical encoder switch
38	AEL-60-D7-ALP	Pilot device latch plastic
40	AEL-60-D7-X10	Contact block NO
42	AEL-ABB-OXS6X180	Main switch shaft
44	AEL-ABB-S2C-DH	Mini breaker mechanism
46	AEL-ABB-S202U-K25	Miniature circuit breaker, Number of poles: 2, Rated current 25.00 A
48	M1-04784823	Rigid IMC Counduit Locknuts 0.500 NPT

Item	Part No.	Part Name	Price
50	WAY-24602	Dome nut 1/2 NPT thread size
52	MAR-SSD53SSH	Closed-end blind rivets, Body dimaeter 0.156
54	DBR-K3-1735-52	Rotary draw latches
56	DBR-K3-0334-52	Keeper plate
58	M1-79802609	Pneumatic hose fitting connector, thread size 0.375 MPT
60	M1-00092189	Safety Lockout valve 0.375 FPT x 0.375 FPT
62	M1-09724709	Hex Nipple, Male Thread Size 0.50 NPT x 0.375 NPT
64	ADA-MGFR400-15-M-W	Mead filter/reg, 1/2 NPT, 5 Micron manual drain

Item	Part No.	Part Name	Price
66	M1-62378559	Swivel male elbow 0.500 NPT x 0.375in OD
68	GI3300-01-044E-V16	Electric panel arm
70	AEL-WA-282128-281417	2-conductor fuse terminal block for glass fuses 1/4 x 1 1/4
72	AEL-WA-282-312	End and intermediate plate. Height: 46.4 mm, Width: 4 mm
74	AEL-EO-3-1800-023A	Contactor 3P FVNR 18A Frame C 1NO 190/50, 220/60 Coil
76	AEL-53-S8VKC06024	Power supply 60W, 24VDC 2.5A 100-240VAC
78	AEL-53-3G3MX2AB004V1	AC Drive, 240V 1PH, 1/2HP 0.4KW
80	AEL-WA-280-402	Adjacent jumper current 24 A insulated, Gray, Width: 5 mm

Item	Part No.	Part Name	Price
82	AEL-WA-280-308	End plate and intermediate plate, Gray, H 28mm, W 2.5 mm
84	GI3300-01-043	Din rail plate
86	AEL-53-CP1LM30DRA	Micro PLC CPU with 30 I/O, Inputs:18, Outputs: 12 relay
88	AEL-WA-210-112	Steel carrier rail, 35 x 7.5 mm, 1mm/0.039 in thick siotted
90	AEL-WA-280-901	2-conductor through terminal block, Color: Gray
92	AUT-T1-1022G	Thin finger duct grey 1in x 2.25in
94	AEL-WA-280-907	2-conductor through terminal block (Ground)
96	ADA-46A-L00-JDAA-1GD	46A Mac valve

Item	Part No.	Part Name	Price
98	ADA-M-46002	46 Series Mac Blank Cover
100	ADA-EBM46A-00AAA-08	46 Mac circuit bar, 46 Manifold 8 Station
102	M1-42008854	1/4 NPT sintered Muffler
104	M1-02203214	End connection plug 0.250 NPT
106	ADA-CPLS375-1/4	Swivel male elbow 0.25 NPT x 0.375in OD
108	ADA-PC68CBC-42	Straight Connector 0.125 NPT x 0.250 in
110	ADA-CPBR156-1/8	Straight Connecto 0.125 NPT x 0.156 in OD
112	M1-02203198	End connection plug 0.125 NPT
