The Piston Bottle Filler PI3300 has two options in tank capacity:

Option A: 30 gallons standard tank

    • 30 Gallon 304 Stainless Steel tank for the reception of product to be filled, includes top cover and 3 sanitary 1 ½ inch standard connections

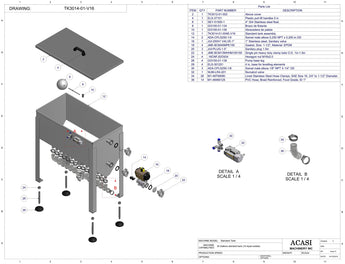

    Item Part No. Part Name Price
    2

    TK3012-01-002

    Above cover

    4 ELS-37101

    Plastic pull lift handles 5 in

    6 SEY-51500-1 4" 304 Stainless steel float
    8 GI3100-01-134 Arm float
    10 GI3100-01-136 Clamp arm float
    12 TK3014-01-004E-V16 Standard tank assembly
    14 ADA-CPLS250-1/4 Swivel male elbow 0.250 NPT x 0.250 in OD
    16 JUI-2WAY VALVE-1" 1" Stainless steel, Sanitary valve
    18 JME-BCM40MPE150 Gasket, Size: 1-1/2", material: EPDM
    Item Part No. Part Name Price
    20 JUI-PLUG-1.5" Sanitary clamp 1.5in
    22 JME-BCM13MHHM100150 Single pin heavy duty clamp tube O.D 1in-1.5 in
    24 .16CNFJS/D934 Hexagon nut M16x2.0
    26 GI3100-01-138 Pump base leg
    28 ELS-301251 4 in, base for leveling elements
    30 ADA-CPLS250-1/8 Swivel male elbow 1/8" NPT x 1/4" OD
    32 NUM-LR4-201 Numatrol valve
    34 M1-49709090 Lined stainless steel hose clamps, SAE size 16, 3/4" to 1-1/2" diameter
    36 M1-48460125 PVC Hose, braid reinforce, food grade, ID 1"
