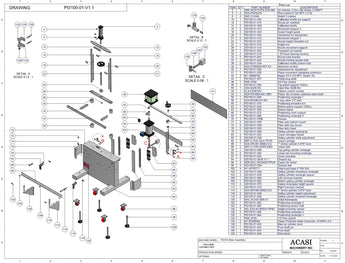

Automatic inline piston filler machine, high viscosity liquid products, Assy PI3100-01-V1.1, by Acasi Machinery Inc.

Acasi

Piston Bottle Filler PI3100 | Filler System & Chassis

Name: Piston Bottle Filler PI3100 | Filler System & Chassis
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL STANDARD

TANKS | ACCESORIES | PISTONS

Item	Part No.	Part Name
2	SMC-NCAY5-E3LO3A-080	Air cylinder, 2.50 in X 8.00 in stroke, 0.25 NPT
4	ADA-FQPS21K	Flow control 0.125 NPT x 5-32...............
8	SMC-D-A54L	Switch 5 meters
10	PI3100-01-020	Calibrated shafts top support
12	PI3100-01-016	Nozzle air manifold
14	SKF-LJXR 20X36 ESSC2	Calibrated shafts
16	GI3100-01-013	Movement stopper 2

Item	Part No.	Part Name
18	GI3100-01-004	Scaled height guide
20	PI3100-01-035	Handwheel for adjustment
21	GI3100-01-012	Movement stopper 1
22	PI3100-01-033	Nozzle height threaded rod
24	GI3100-01-010	Height nut
26	GI3100-01-014	Nozzle movement support
28	PI3100-01-025	Threaded rod washer
30	GI3100-01-016	1.25 linear bearing housing
32	PI3100-01-024	Nozzle tube bracket

Item	Part No.	Part Name
34	GI3100-01-024	Nozzle holding square tube
36	GI3100-01-034	Calibrated shafts bottom hold
38	ADA-AT800X6-SST-XX	Aluminum oil tank
40	ELS-978621	Handwheel for adjustment
41	PI3100-01-038	Piston movement plexiglass protection
42	M1-36899706	Nipple 3/4 X 3/4 NPT, lenght: 2in
44	PI3100-01-057	Positioning shaft
46	PNE-JF6N	3/4 Flow control

Item	Part No.	Part Name
48	PI3100-01-036	Top piston support 1020cc
50	ADA-922B-RA	Valve Mac 922B-RA
52	ELS-CE983631	Volume control counter
54	ADA-FM-MS4-6X7.5BH	Piston, 6in of travel, stainless steel shaft
56	PI3100-01-058	Positioning rectangle 1
58	ADA-6532B-241-RA	4 way valve 1/2" port
60	PI3100-01-070	Positioning threaded rod
62	PI3100-01-048	Bottom piston support 1020cc

Item	Part No.	Part Name
64	PI3100-01-050	Sensor signal
66	PI3100-01-072	Positioning main support
68	PI3100-01-068	Positioning rectangle 5
70	PI3100-01-076E	Chassis
72	GI3100-01-054	Fiber optic bottom mount
74	GI3100-01-056	Fiber optic top mount
76	GI3100-01-055	Fiber optic head
78	GI3100-01-068	Gating cylinder spacing tip

Item	Part No.	Part Name
80	PI3100-01-052	Linear carriages blocks
82	GI3100-01-058	Gating cylinder width adjustment
84	SKF-LLTHC-30-A-T0-P5	Linear carriage
86	ADA-SR-061-DEE0.5-G	1" stroke cylinder 0.875" bore
88	SKF-LLTHR-30-P5-4000	Linear rails
90	GI3100-01-066	Top gating cylinder rectangle
92	PI3100-01-056	Linear rail mounting rectangle
93	PI3100-01-054	Acrylic brackets

Item	Part No.	Part Name
94	GI3100-01-091E-V1.1	Chassis leg
96	SER-SCC-30CS420-PPUR	Caster 4in wheel
98	GI3100-01-090	Chassis feet
100	M1-45763711	Polymount base 4'' SW QIA
102	GI3100-01-052	Gating cylinder threadless rectangle
104	GI3100-01-050	Gating cylinder rectangle spacer
106	GI3100-01-064	Left conveyor bracket
108	PI3100-01-082	Bottom gating cylinder rectangle

Item	Part No.	Part Name
110	GI3100-01-070	Gating rectangles height spacer
112	GI3100-01-072	Right conveyor bracket
114	ADA-SR-064-DEE0.5-G	4" stroke cylinder 0.875" bore
116	GI3100-01-048	Gating cylinder height adjustment
118	GI3100-01-060	Gating cylinder threaded rectangle
120	MAC-ACASI-SER-01	Serial Nameplate
122	PI3100-01-062	Positioning rectangle 2
124	PI3100-01-060	Positioning sensor hold

Item	Part No.	Part Name
126	AEL-E2A-M12KS04-WPB1	Height proximity sensor
128	PI3100-01-066	Positioning rectangle 4
130	PI3100-01-064	Positioning rectangle 3
132	PNE-JF4N	1/2 Flow control
134	M1-82288564	Parker Prestolok Male Connector, W169PL-4-6
136	PI3100-01-040	Main air cylinder pivot
138	PI3100-01-044	Pivot shaft pin
140	PI3100-01-042	Pivot shaft
142	PI3100-01-046	Drive block
