Automatic inline pressure overflow bottle filler machine, low viscosity, Part GI3300-01-106, by Acasi Machinery Inc.

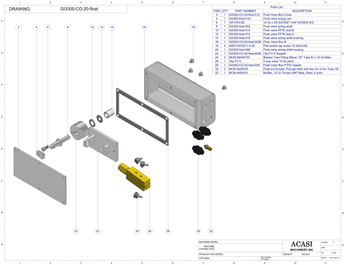

Overflow Liquid Filler Part GI3300-CO-20-Float

Item	Part No.	Part Name
2	GI3300-CO-20-FLOAT-012	Float Valve Box Cover
4	GI3300-FLOAT-018	Float Valve Acting Cam
6	10FT37KCSS	10-32 X 3/8 Socket Cap Screw S/S
8	GI3300-FLOAT-002	Float Valve Acting Shaft
10	GI3300-FLOAT-014	Float Valve PTFE Seal B
12	GI3300-FLOAT-012	Float Valve PTFE Seal A
14	GI3300-FLOAT-016	Float Valve Acting Shaft Bushing
16	GI3300-CO-20-FLOAT-002E	Float Valve Box B

Item	Part No.	Part Name
18	AME-FSCX011-0.25	Float Socket Cap Screw 10-32 X 0.250
20	GI3300-FLOAT-006	Float Valve Acting Shaft Housing
22	GI3300-CO-20-FLOAT-004E	Clip-FV-5 Support
24	MCM-2844K730	Barbed Tube Fitting Elbow 1/8" Tube ID X 10-32 Male
26	Clip-FV-5	5 Way Valve 10-32 Ports
28	GI3300-CO-20-FLOAT-008	Float Valve Box PTFE Gasket
30	MCM-5225K35	Push-to-Connect Through-Wall With Nut, For 4mm Tube OD
32	MCM-4450K31	Muffler, 10-32 Thread UNF Male, Steel, 6 scfm

Overflow Liquid Filler Part GI3300-CO-20-Float
