Overflow Bottle Filler GI3300 | Pressure Overflow Nozzles

$ 341.00


FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL STANDARD | PUMP AND TANK

PRESSURE OVERFLOW NOZZLES | BOTTOM UP NOZZLES

CENTERING GUIDES | COMBINATED SYSTEM | DRIP TRAYS

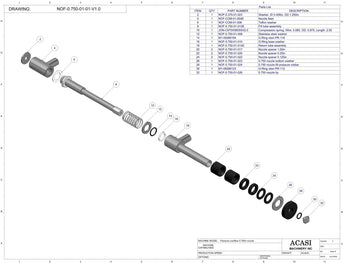

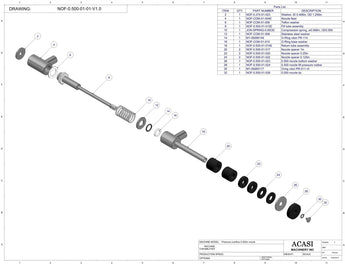

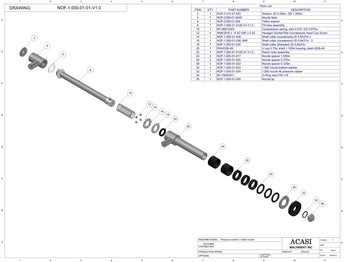

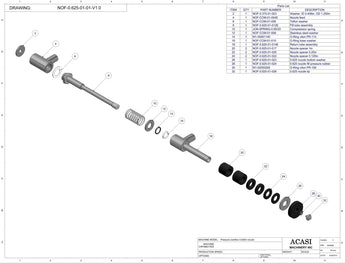

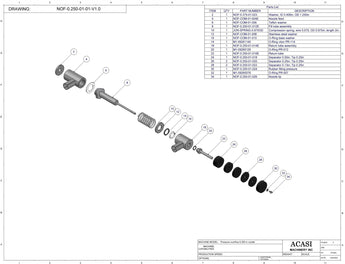

Item Part No. Part Name Price
2 NOF-0.375-01.023 Washer, ID 0.406in, OD 1.250in U$0.00
4 NOF-COM-01-004E Nozzle feed U$0.00
6 NOF-COM-01-006 Teflon washer U$0.00
8 NOF-0.250-01.012E Fill tube assembly U$0.00
10 JON-SPRING-0.975OD

Compression spring wire 0.075, OD 0.975in, length 2in.

U$0.00
12 NOF-COM-01-008 Stainless steel washer U$0.00
14 M1-09261140 O-Ring viton PR-114 U$0.00
16 NOF-COM-01-010 O-Ring base washer U$0.00
Item Part No. Part Name Price
18 NOF-0.250-01.014E

Return tube assembly

U$0.00
20 M1-09260126

O-Ring PR-012

U$0.00
22 NOF-0.250-01.016E Return tube U$0.00
24 NOF-0.250-01.018 Separator 0.50in, Tip 0.25in U$0.00
26 NOF-0.250-01.020 Separator 0.25in, Tip 0.25in U$0.00
28 NOF-0.250-01.022 Separator 0.13in, Tip 0.25in U$0.00
30 NOF-0.250-01.024 Rubber filling pressure U$0.00
32 M1-09260076 O-Ring PR-007 U$0.00
34 NOF-0.250-01.026 Nozzle tip U$0.00
