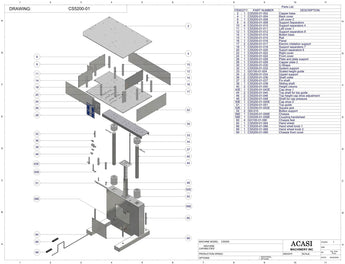

Inline capping machine for a wide range of containers and caps, model CS5200, Assy CS-5200-01, by Acasi Machinery Inc.

Acasi

Inline Bottle Capping Machine Model CS5200 | Chassis System (CS-5200-01)

Name: Inline Bottle Capping Machine Model CS5200 | Chassis System (CS-5200-01)
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

Manufactured Parts | Components

Item	Part No.	Part Name
2	CS5200-01-002	Capper base
4	CS5200-01-004	Back cover
6	CS5200-01-006	Left cover 2
8	CS5200-01-008	Support Separators
10	CS5200-01-010	Support separators 4
11	CS5200-01-011	Left cover 1
12	CS5200-01-012	Support separators 8
14	CS5200-01-014	Botton base
15	CS5200-01-015	Rail
16	CS5200-01-016	Panel

Item	Part No.	Part Name
17	CS5200-01-017	Electric intalation support
18	CS5200-01-018	Support separators 7
20	CS5200-01-020	Support separators 6
22	CS5200-01-022	Right cover
24	CS5200-01-024	Front cover
26	CS5200-01-026	Plate and plate support
28	CS5200-01-028	Capper plate 2
30	CS5200-01-030	U-Shape
32	CS5200-01-032	System support

Item	Part No.	Part Name
33	GI3100-01-004	Scaled height guide
34	CS5200-01-034	Uppert support
36	CS5200-01-036	Shaft collar
37	CS5200-01-037	Fix shaft
38	CS5200-01-038	Sliding shaft
40	CS5200-01-040	Height colums
42E	CS5200-01-042E	Cap shoe 1
44	CS5200-01-044	Top shaft for top guide
46	CS5200-01-046	Top height cap shoe adjustment

Item	Part No.	Part Name
48	CS5200-01-048	Shaft for cap pressure
50E	CS5200-01-050E	Cap shoe 2
51	CS5200-01-051	Top guide
52E	CS5200-01-052E	Square jack
54	300-010	Botton support
56E	CS5200-01-056E	Chassis
58E	CS5200-01-058E	Coupling handwheel
60	GI3100-01-090	Chassis feet

Item	Part No.	Part Name
64	CS5200-01-064	Hand wheel
66	CS5200-01-066	Hand whell knob 1
68	CS5200-01-068	Hand wheel knob 2
69	CS5200-01-069	Chassis front cover
