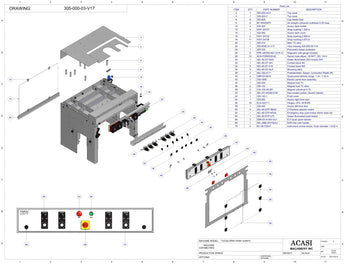

Inline Bottle Cap Tightener Model-TruCap | Main Holder System (305-000-03-V17)


CHASSIS SYSTEM | MAIN HOLDER SYSTEM

ELECTRIC PANEL SYSTEM | BOTTLE BELTS SYSTEM

BELTS SYSTEM GEAR BOX | CAPPING DISC GEAR BOX

CAPPING DISC SYSTEM (MECHANICAL CLUTCHES)

CAPPING DISC SYSTEM (PNEUMATIC CLUTCHES)

 ___________________________________________________

305-000-01-V17 | 305-000-03-V17

Item Part No. Part Name Price
2 305-220-V2.0 Top cover
4 305-220-C Top cover
6 305-006 Cap feeder fixer
8 M1-84425875 Air straight connector bulkhead 0.25 hose
10 305-300 Acrylic back holder
12 WAY-24107 Snap bushing 1.250 in
14 305-290 Acrylic back cover
16 WAY-24102 Snap bushing 0.500 in
Item Part No. Part Name Price
18 WAY-24106 Snap bushing 0.875 in
20 305-310 Main TC strut
22 305-500E-01-V17 View drawing 305-000-05-V16
24 305-330 Pneumatic hoses protection
26 HPE-ARG20-N01 G1H-1Z Regulator with gauge inbeded
28 ADA-PC69SCB-42 Swivel male elbow 1/8 NPT, OD: 1/4 in
30 AEL-60-D7-N3G Green illuminated LED module 24VAC
32 AEL-60-D7-X01 Contact block NC
Item Part No. Part Name Price
34 AEL-60-D7-X10 Contact block NO
36 AEL-60-D7-ALP Mounting latch
38 AEL-QQ-9111 Potenciometer, Speed, Conductive Plastic 5K
40 DBR-E5-8018 Quad panel latches, range: 1.34- 1.42 in
42 305-180E Electric panel door assembly
44 305-350 Magnet hold TC
46 305-142 Magnet hold TC shim
48 CAI-10X-05-081 Magnet cylindrical 0.75
Item Part No. Part Name Price
50 AEL-ST-44536-0100 Non-contact switch, (Guard master)
52 305-140-1 Front cover
54 305-260 Acrylic right front door
56 ELS-422111 Hinges, CFA, 49 B-M5
58 305-240 Acrylic left front door
60 AEL-60-D7P-SM22 2-Position selector switch
62 AEL-60-D7P-MT44 Emergency Stop Push button 40 mm twist red
64 AEL-60-D7P-LF3 Green illuminated push buttom
66 DBR-E5-6-005-UU1 E-5 Quad panel latches
68 AEL-ABB-OHS2AJ N3R Disc with handle
70 M1-06172837 Instrument control knobs, Knob diameter: 1-5/32 in
