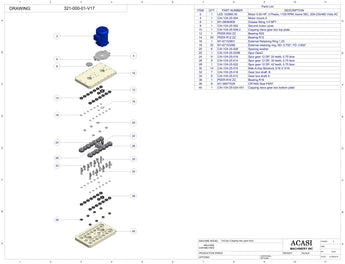

Inline Bottle Cap Tightener Model-TruCap | Capping Disc Gear Box
$ 0.00 USD
/
CHASSIS SYSTEM | MAIN HOLDER SYSTEM
ELECTRIC PANEL SYSTEM | BOTTLE BELTS SYSTEM
BELTS SYSTEM GEAR BOX | CAPPING DISC GEAR BOX
CAPPING DISC SYSTEM (MECHANICAL CLUTCHES)
CAPPING DISC SYSTEM (PNEUMATIC CLUTCHES)
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 |
LEE-102860.00 |
Motor 0.50 HP, Phase, 1725 RPM, frame 56C, 208-230/460 Volts AC |  |
| 4 | CAI-10X-25-004 | Motor mount A | |
| 6 | M1-08060808 | Grease fitting 1/4 NPT | |
| 8 | CAI-10X-25-002 | Second motor cover | |
| 10 | CAI-10X-25-006-2 | Capping discs gear box top plate | |
| 12 | PEER-R20 ZZ | Bearing R20 | |
| 14 | PEER-R12 ZZ | Bearing R12 | |
| 16 | M1-67153601 | External Retaining Ring 1.25 | |
| 18 | M1-67153288 | External Retaining Ring SD: 0,750" , FD: 0.693" | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 20 | CAI-10X-25-008 | Spacing washer | |
| 22 | CAI-10X-25-020B | Spur Gear 2 | |
| 24 | CAI-10X-25-016 | Spur gear 12 DP, 24 teeth, 0.75 face | |
| 26 | CAI-10X-25-014 | Spur gear 12 DP, 30 teeth, 0.75 face | |
| 28 | CAI-10X-25-022 | Spur gear 12 DP, 42 teeth, 0.75 face | |
| 30 | CAI-10X-25-010 | Mak-A-Key Barstock 3/16 X 3/16 | |
| 32 | CAI-10X-25-018 | Gear box shaft B | |
| 34 | CAI-10X-25-012 | Gear box shaft A | |
| 36 | PEER-R16 ZZ | Bearing | |
| 38 | M1-36677029 | CR7464 Seal PART | |
| 40 | CAI-10X-25-024-V01 | Capping discs gear box bottom plate | |
