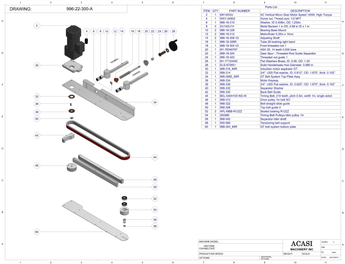

Gap Transfer - Model GT-16 | Belt System ( 996-22-300-A )


STRUCTURE   |  BELT SYSTEM

996-200-300-A 996-200 V1

Item Part No. Part Name Price
2 6IK140GU AC Vertical Micro Gear Motor Speed 140W. High Torque
4 WAY-24602 Dome nut 1/2 NPT thread size
6 996-18-310 Washer, ID 0.406in, OD 1.250in
8 ZU14ZU14 Metal Backed 1 in OD, 0.88 in ID x 1 in
10 996-18-328 Bearing Base Mount
12 996-18-312 Metric Ruler 0.25in x 14cm
14 996-18-308 V2 Adjusting Shaft
16 996-18-326R Tube 28 Bushing Right Hand
18 996-18-304 V2 Front Threaded Rod 1
Item Part No. Part Name Price
20 M1-78340767 ASA 35 , 14 Teeth 0.500 Bore
22 996-18-324 Gear spur - threaded rod guide separator
24 996-18-322 Threaded Rod Guide 1
26 M1-77153450 Flat Washers Brass ; ID: 0.56 ; OD: 1.25
28 ELS-972651 Solid Handwheels Hud Diameter: 0.980in
30 998-316_MIR Induction Motor Separator GT
32 998-314 3/4" USS Flat Washer, ID: 0.812", OD: 1.875", Thick: 0.102"
34 998-306E_MIR GT Belt System Top Plate Assy
Item Part No. Part Name Price
36 998-334 Motor Keyway
38 998-336 3/4" USS Flat Washer, ID: 0.625", OD: 1.875", Thick: 0.102
40 998-332 Separator Washer
42 998-330 Back Belt Guide
44 BEL-540H100 NG-W Belt 108 teeth, 0.5in pitch, 1in wide
46 998-312 Drive Pulley 1in Belt SO
48 998-322 Belt straight slide guide
50 998-308 Top Belt Guide 2
Item Part No. Part Name Price
52 APL-MBB-R12ZZ Sealed bearing R12ZZ
54 200080 Timing Belt Pulleys-Idler pulley 1in
56 998-042 Separator-Idler shaft
58 550-580 Tensioning belt support
60 998-304_MIR GT belt system bottom plate
