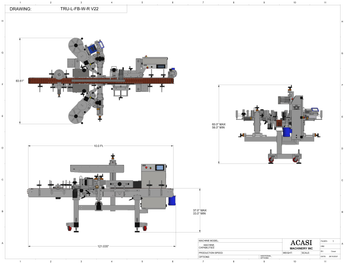

Front and Back-Wrap Labeler Model Tru-Labeler-FB-W | Drawing

Request a Quote

Main Construction Features:

1500 in/min labeling head
Maximum label height: 7.25in
Heavy duty 304 stainless steel frame
Heavy duty casters standard
No change parts needed for a wide range of containers
Stepper driven
Rolls wind #4
Maximum container width: 6”
Minimum container height: 1/2”
Conveyor: 10ft long, 4.5” wide acetal chain with speed control installed on labeler control panel

Electric and pneumatic requirements:

208 - 240 Volts, Single phase, 50/60Hz, 10 Amps.
