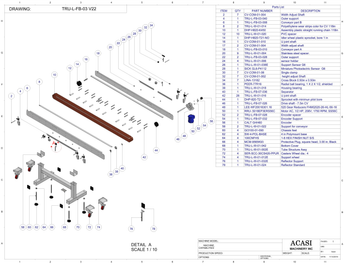

Front and Back Labeler Model Tru-Labeler-FB | Tube Structure & Conveyor


TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|CHAIN SYSTEM | INVERTED CONVEYOR | INVERTED CONVEYOR SUPPORT SYSTEM | ELECTRIC PANEL TOUCH | SPACING WHEEL



Item Part No. Part Name Price
2 CV-COM-01-004 Width Adjust Shaft
4 TRU-L-FB-03-040 Outer Support
6 TRU-L-FB-03-008 Conveyor Part B
8 TRU-L-W-01-014 Polyethylene wear strips color for CV 118in
10 DHP-H820-K450 Assembly Plastic Straight Running Chain 118in
12 TRU-L-W-01-020 PVC Spacer
14 DHP-H820-T21-NO Idler Wheel Plastic Sprocket, Bore 1in
16 CV-COM-01-010 U Joint Shaft
18 TRU-L-FB-03-010 Conveyor Part A
20 TRU-L-W-01-004 Stainless Steel Spacer
Item Part No. Part Name Price
22
TRU-L-FB-03-028 Outer Support
24
TRU-L-W-01-006 Sensor Holder
26
TRU-L-W-01-038E Support Sensor G6
28
SICK GL6-P4112 Miniature Photoelectric Sensor G6
30
CV-COM-01-08 Single Clamp
32
CV-COM-01-002 Height Adjust Shaft
34
LINA-13182 Cross Block 0.50in x 0.50in
36 PEER-77R16 Radial Ball Bearing 1 X 2 X 1/2, Shielded
38 TRU-L-W-01-018 Bearing Housing
40
TRU-L-FB-07-036 Separator
42
TRU-L-W-01-016 U Joint Shaft



Item Part No. Part Name Price
44 DHP-820-T21 Sprocket With Minimum Pilot Bore
46 TRU-L-FB-07-026 Drive Shaft- 7.5 in CV
48 LEE-WF20016301.16 520 Gear Reducers FHMQ520-26-HL-56-16
50
RRU-.5018EP3ERS56C Motor AC, 1/2 HP, 208V, 1750 RPM, SS56C
52
TRU-L-FB-07-028 Encoder Spacer
54
TRU-L-FB-07-032 Encoder Support
56
CALT GHH60 Encoder
58
TRU-L-W-01-022 Support For Conveyor
60
GI3300-01-090 Chassis Feet
62
SW-4-POL-BASE 4 in Polymount Base
Item Part No. Part Name Price
64
100CNFHS  1-8 Hex Finish Nut S/S
66
MCM-9565K93 Protective Plug, Square Head, 3.00 in, Black
68
TRU-L-W-01-042 Bottom Cover
70 TRU-L-W-01-002E Tube Structure Assy
72
SER-SCC-30CS420-PPUR Caster Wheel Dia: 4
74
TRU-L-W-01-012E Support Wheel
76
TRU-L-W-01-032E Reflector Support
78
SICK 5304812 Reflector Standard
