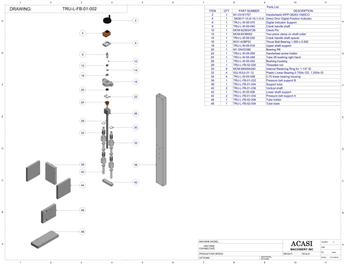

Front and Back Labeler Model Tru-Labeler-FB | Inverted Conveyor Support System

Item	Part No.	Part Name
2	M1-03181757	Handwheels KIPP-06263-1080CO
4	SK0917-10, OI-19, 1-O-A	Direct Driver Digital Position Indicator
6	TRU-L-W-05-070	Digital Indicator Support
8	TRU-L-W-05-040	Crank Handle Shaft
10	MCM-92383A726	Clevis Pin
12	MCM-6436K62	Two Piece Clamp on Shaft Collar
14	TRU-L-W-05-030	Crank Handle Shaft Spacer
16	6031-4VBF53	Thrust Ball Bearing 1.000 X 0.500
18	TRU-L-W-05-016	Upper Shaft Support
20	M1-35433390	Bearing R8

Item	Part No.	Part Name
22	TRU-L-W-05-050	Handwheel Screw Holder
24	TRU-L-W-05-046	Tube 28 Bushing Right Hand
26	TRU-L-W-05-052	Bushing Housing
28	TRU-L-FB-02-020	Threaded Rod
30	MCM-98409A240	Internal Retaining Ring for 1-1/4" ID
32	IGU-RJUI-01-12	Plastic Linear Bearing 0.750in OD, 1.250in ID
34	TRU-L-W-05-008	0.75 Linear Bearing Housing
36	TRU-L-FB-01-032	Pressure Belt Support B
38	TRU-L-FB-01-004	Support Tube
40	TRU-L-FB-01-036	Vertical Shaft
42	TRU-L-W-05-006	Lower Shaft Support
44	TRU-L-FB-01-034	Pressure Belt Support A
46	TRU-L-FB-02-006	Tube Holder
48	TRU-L-FB-02-004	Tube Base
