Front and Back Labeler Model Tru-Labeler-FB | Inverted Conveyor


TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|CHAIN SYSTEM | INVERTED CONVEYOR | INVERTED CONVEYOR SUPPORT SYSTEM | ELECTRIC PANEL TOUCH | SPACING WHEEL

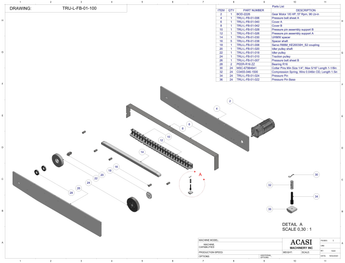

Item Part No. Part Name Price
2 BOD-2226 Gear Motor 1/6 HP, 57 Rpm, 96 Lb-in
4 TRU-L-FB-01-006 Pressure Belt Sheet A
6 TRU-L-FB-01-040 Cover A
8 TRU-L-FB-01-042 Cover B
10 TRU-L-FB-01-028 Pressure Pin Assembly Support B
12 TRU-L-FB-01-026 Pressure Pin Assembly Support A
14 TRU-L-FB-01-030 UHMW Spacer
16 TRU-L-FB-01-038 Spacer Shaft
18 TRU-L-FB-01-008 Servo R88M_KE20030H_S2 coupling
20 TRU-L-FB-01-020 Idler Pulley Shaft
Item Part No. Part Name Price
22
TRU-L-FB-01-018 Idler Pulley
24
TRU-L-FB-01-010 Traction Pulley
26
TRU-L-FB-01-007 Pressure Belt Sheet B
28
PEER-R16 ZZ Bearing R16- 0.375 Width
30
MSC-67984641 Cotter Pins Min Size1/4", Max 5/16" Length 1-1/8in
32
C0455-046-1500 Compression Spring, Wire 0.046in OD, Length 1.5in
34
TRU-L-FB-01-024 Pressure Pin
36 TRU-L-FB-01-022 Pressure Pin Base
