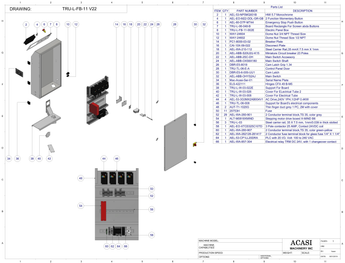

Front and Back Labeler Model Tru-Labeler-FB | Electric Panel Touch



TUBE STRUCTURE & CONVEYOR | LABELING HEAD SYSTEM WITH PRINTER|CHAIN SYSTEM | INVERTED CONVEYOR | INVERTED CONVEYOR SUPPORT SYSTEM | ELECTRIC PANEL TOUCH SPACING WHEEL



Item Part No. Part Name Price
2 AEL-53-NP5MQ001B HMI 5.7" monochrome
4 AEL-EO-M22-DDL-GR-GB 2-Fuction Momentary Button
6 AEL-60-D7P-MT44 Emergency Stop Push button
7 TRU-L-06-048-B Board Rectangle for screen and buttons
8 TRU-L-FB-11-002E Electric Panel Box
10 WAY-24604 Dome Nut 3/4 NPT Thread Size
12 WAY-24602 Dome Nut, Thread Size: 1/2 NPT
14 PC1-8000-03-02 Breaker Plate
16 CAI-10X-09-022 Disconnect Plate
18 AEL-WA-210-112 Steel Carrier Rail, 35mm x 7.5mm x 1mm
22 AEL-ABB-S202U-K15 Miniature Circuit
22 AEL-ABB-S2C-DH Mini breaker mechanism
Item Part No. Part Name Price
24
AEL-ABB-OXS6X180 Main Switch Shaft
26
DBR-E5-8018 Cam Latch Grip 1.34
28 TRU-TL-06-E-A Control Panel Door
30
DBR-E5-6-005-UU1 Cam Latch
32
AEL-ABB-OHYS2AJ Main Switch
34
MAC-ACASI-SER-01 Serial Name Plate
36
ELS-422111 Hinges, CFA. 49 B-M5
38 TRU-L-W-03-022E Support For Board
40
TRU-L-W-03-026 Cover For Electrical Tube 2
42
TRU-L-W-03-008 Cover For Electrical Tube



Item Part No. Part Name Price
44 AEL-53-3G3MX2AB004V1 AC Drive, 240 V 1PH, 1/2HP 0.4 KW
46 TRU-TL-06-008 Support For Board Electrical Components
48 AUT-T1-1020G Thin Finger Duct Gray 1 PC, 2M With Cover
50
20753H Fuse
52
AEL-WA-280-901 2-conductor through terminal block
54 ALT-M0818XMIND Stepping Motor Drive Boxed X-MIND B6
56
TRU-L-03 Steel Carrier Rail, 35 x 7.5mm, 1mm/0.039in Thick Slotted
58
AEL-EO-XTCE025C10TD 3 Pole contactor 25 AMP, Contac 24VDC coil
62
AEL-WA-282128-281417 2-Conductor Fuse Terminal Block Glass Fuses 1/4 x 1 1/4
64 AEL-53-CP1LL20DRA Micro PLC With 20 I/O , Voltage: 100/240 VDC. Inputs 18
66 AEL-WA-857-304 Electrical Relay TRM DC 24V, With 1 Changeover Contact
