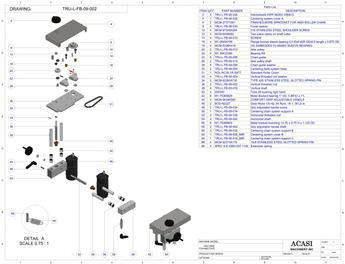

Front and Back Labeler Model Tru-Labeler-FB | Chain System

Item	Part No.	Part Name
2	TRU-L-FB-09-026	Handwheels KIPP-06263-1080CO
4	TRU-L-FB-09-028	Centering System Cover A
6	MCM-2737T281	Finished-Bore Sprocket For Ansi Roller Chain
8	TRU-L-FB-09-030	Cover Spacer
10	MCM-97345A264	316 Stainless Steel Shoulder Screw
12	MCM-6436K62	Two Piece Clamp on Shaft Collar
14	TRU-L-FB-09-010	316 Stainless Steel Screw
16	M1-06454706	Flange Bronze Sleeve Bearing 0.5 ID X 0.625 OD X 0.5 Length X 0.875 OD
18	MCM-6338K419	Oil-Embedded Flanged Sleeve Bearing
20	TRU-L-FB-09-012	Idler Pulley

Item	Part No.	Part Name
22	M1-35433390	Bearing R8
24	TRU-L-FB-09-006	Chain Guide
26	TRU-L-FB-09-014	Idler Pulley Shaft
28	TRU-L-FB-09-008	Chain Guide Washer
30	TRU-L-FB-09-004	Centering Chain System Base
31	ROL-RC35-1R-50FT	Standard Roller Chain
32	TRU-L-FB-09-024	Vertical Threaded Rod Washer
34	MCM-92383A730	Type 420 Stainless Steel Slotted Spring Pin
36	TRU-L-FB-09-022	Vertical Threaded Rod
38	TRU-L-FB-09-018	Vertical Shaft
40	200340	Tube 28 Bushing Right Hand
42	M1-75368829	Metal Backed Bearing 1" OD, 0.88" ID X 1" L

Item	Part No.	Part Name
44	MCM-5634K590	Comfort- Grip Adjustable Handle
46	BOD-N2227	Gear Motor 1/6 Hp, 94 Rpm, 18:1, 39 Lb-in
48	TRU-L-FB-09-034	Grip Adjustable Handle Screw
50	TRU-L-FB-09-016	Centering Chain System Support A
52	TRU-L-FB-09-038	Horizontal Threaded Rod
54	TRU-L-FB-09-040	Horizontal Shaft
56	M1-75368845	Metal Backed Bushing 1in ID X 0.75 H X 1.125 OD
58	TRU-L-FB-09-042	Grip Adjustable Handle Shaft
60	TRU-L-FB-09-032	Centering Chain Guide System Support B
62	TRU-L-FB-09-028_MIR	Centering System Cover B
64	TRU-L-FB-09-016_MIR	Centering Chain System Support C
66	MCM-92373A179	18-8 Stainless Steel Slotted Spring Pin
68	SPEC S-E-0300-037-1120	Extension Spring
