Elevation System CF-WaterFall (810-300-COL-V17)

Name: Elevation System CF-WaterFall (810-300-COL-V17)
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

CF-WaterFall | Elevation system

__________________________________________________

Option:

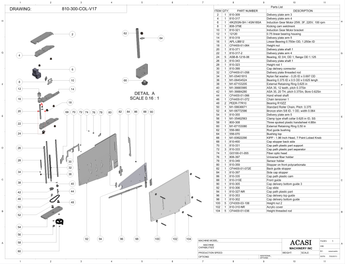

Cap chute (12000)

Item	Part No.	Part Name
2	810-309	Delivery Plate Arm 3
4	810-317	Delivery Plate Arm 4
6	4IK25GN-SH / 4GN18SA	Induction Gear Motor 25W, 3F, 220V, 100 rpm
8	806-379E	Kicking cam weldment
10	810-321	Induction Gear Motor bracket
12	12120	0.75 linear bearing housing
14	810-319	Delivery Plate Arm 5
16	APL-LBB12	Linear Bearing 0.750in OD, 1.250in ID

Item	Part No.	Part Name
18	CF4400-01-064	Height nut
20	810-371	Delivery plate shaft 1
22	810-317-2	Delivery plate arm 4
24	ASB-B-1216-06	Bearing, ID 3/4, OD 1, flange OD 1.125
26	810-343	Delivery plate shaft 1
28	810-323	Height rod 1
30	810-399	Cap delivery connector

Item	Part No.	Part Name
32	CF4400-01-058	Delivery plate threaded rod
34	M1-05401815	Nylon flat washer - 0.25 ID x 0.697 OD
36	M1-06454524	Bearing 0.375 ID x 0.5 OD x 0.625 length
38	M1-67153205	External Retaining Ring 0,625 in
40	M1-36683985	ASA 35, 12 teeth, pitch 0.375in
42	M1-36684280	ASA 35, 20 TH, pitch 0.375in, Bore 0.625in
44	CF4400-01-066	Hand wheel shaft
46	CF4400-01-072	Chain tensioner 1

Item	Part No.	Part Name
48	PEER-77R10	Bearing R10ZZ
50	M1-58636671	Standard Roller Chain, Pitch: 0.37
52	M1-06772586	Bronze shim 5/8 ID, 1 OD, width 0.064
54	810-355	Delivery plate arm 5
56	M1-35462563	Clamp type shaft collar 0.625 in ID, SS
58	800-308	Three spoked plastic handwheel 4.88in
60	M1-67153080	External Retaining Ring 0,50 in
62	556-060	Rod guide bushing

Item	Part No.	Part Name
64	556-070	Bushing top
66	M1-0062290	KIPP - 1.96 Inch Head, 7 Point Lobed Knob
68	810-400	Cap stopper back side
70	810-331	Cap path plastic part support
72	810-333	Cap path plastic part separator
74	GI3100-01-055	Fiber optic head
76	806-397	Universal fiber holder
78	810-349	Sensor holder

Item	Part No.	Part Name
80	810-359	Stopper on front polycarbonate
82	CF4400-01-072E	Back guide stopper
84	810-397	Side cap stopper
86	810-335	Cap path plastic cam
88	CF4400-01-032E	Front guide
90	810-305	Cap delivery bottom guide 3
92	810-306	Cap slide
94	810-327-NR	Cap path plastic part

Item	Part No.	Part Name
96	810-353	Cap delivery top guide
98	810-302	Cap delivery bottom guide
100	CF4300-03-108	Height nut 2
102	810-310-NR	Acrylic cover
104	CF4400-01-036	Height threaded rod
