Automatic inline pressure overflow bottle filler machine, low viscosity, Part GI3300-01-106, by Acasi Machinery Inc.

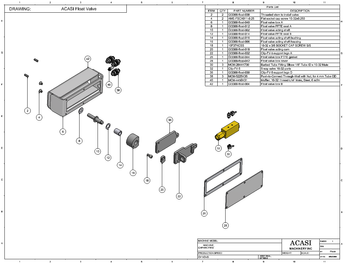

Overflow Liquid Filler Part GI3300-Float

Item	Part No.	Part Name
2	GI3300-Float-038	Threaded Stem to Install Valve
4	AME-FSCX011-0.25	Flat Socket Cap Screw 10-32 x 0.250
6	GI3300-Float-040	Float Valve Box A
8	GI3300-Float-012	Float Valve PFTE seal A
10	GI3300-Float-002	Float Valve Acting Shaft
12	GI3300-Float-014	Float Valve PFTE seal B
14	GI3300-Float-016	Float Valve Acting Shaft Bushing
16	GI3300-Float-006	Float Valve Acting Shaft Housing
18	10F37KCSS	10-32 X 3/8 SOCKET CAP SCREW S/S
20	GI3300-Float-018	Float Valve Acting Cam
22	GI3300-Float-032E	Clip-FV-5 Support

Item	Part No.	Part Name
26	GI3300-Float-044	Float Valve Box PTFE Gasket
28	GI3300-Float-042	Float Valve Box Cover
30	MCM-2844K730	Barbed Tube Fitting Elbow 1/8" Tube ID x 10-32 Male
32	Clip-FV-5	5 Way Valve 10-32 Ports
36	GI3300-Float-030	Clip-FV-5 Support Lego D
38	MCM-5225K35	Push-to-Connect Through-Wall With Nut, for 4 mm Tube OD
40	MCM-4450K31	Muffler, 10-32 Thread UNF Male, Steel , 6 scfm
42	GI3300-Float-004	Float Valve Box B

Overflow Liquid Filler Part GI3300-Float
