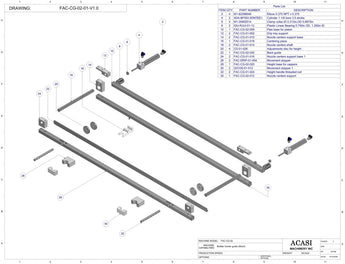

Bottles Centering Guide (Short)


Bottles Center Guide

Long | Short
Item Part No. Part Name Price
2

M1-82288648

Elbow 0.375 NPT x 0.375

4 ADA-BF093.5DNTEE1

Cylinder 1-1/6 bore 3.5 stroke

6 M1-35462514 Clamp collar, ID 0.313in, OD 0.6875in
8 IGU-RJUI-01-12 Plastic Linear Bearing 0.750in OD, 1.250in ID
10 FAC-CG-02-008 Pipe base for piston
12 FAC-CG-01-002 Drip tray support
14 FAC-CG-01-010 Nozzle centers support base
16 FAC-CG-01-018 Centering piece
Item Part No. Part Name Price
18 FAC-CG-01-014

Nozzle centers shaft

20 CD-01-026

Adjusments disc for height

22 FAC-CG-02-030 Back guide
24 FAC-CG-01-016 Nozzle centers support base 1
26 FAC-DRIP-01-004 Movement stopper
28 FAC-CG-02-020 Height base for cappers
30 GI3100-01-012 Movement stopper 1
32 FAC-CG-01-024 Height handle threaded rod
34 FAC-CG-02-012 Nozzle centers support
