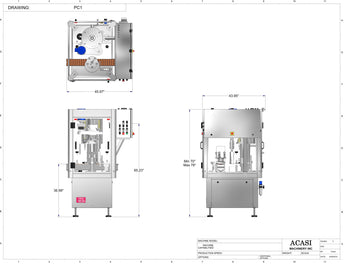

Chuck bottle capper model PC1 Drawings


ACASI rotary multi head chuck capper

Model PC1-8000

Capper features:
  • Machine designed to place plastic or metal caps on a wide range of containers – enclosures.
  • Price includes one set of change parts (star wheel, outer guide, cap delivery and chuck).
  • Acasi magnetic clutch capping head model MJ90 (Magnetic with Jaws), visual torque setting for ease of adjustment, manufactured in 304 stainless steel.
  • Pick and place mechanism in stainless steel. Cap is delivered to the chuck, and then the chuck comes down holding the cap (This prevents cross- threading).
  • Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
  • Center CAM manufactured in special cam rated casting.
  • Cap delivery to transfer plate only when bottles are present.
  • Price includes one set of chance parts (In feed screw and star wheels).
  • Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
  • 3 Hp Ac motor with frequency drive speed control.
  • Stainless steel electric enclosure.
  • Heavy duty 304 Stainless steel welded frame.
  • Stainless steel enclosure with polycarbonate windows and safety switches.
  • All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel.
  • Gear driven transmission machine to avoid timing loss.
  • Complete height adjustment with bottle setting guide for quick changeovers.
  • Tool-less changeovers for star wheels and most change parts.
  • All electric, pneaumatic and mechanical components are off the shelf and commercially available.
  • For round glass and PVC containers the machine is equipped with an anti-rotation belt device actuated pneumatically.
  • For PET the center star wheel comes standard with anti-rotation teeth for each capping head.
  • For odd shape container, rectangular, oblong, and others, star wheel design is used to prevent rotation of the containers.

Cap chute features:

  • All contact parts in stainless steel.
  • Designed and tested for each cap to avoid jamming.
  • Includes cap demand sensor to start and stop the cap feeder.
  • Quick change over, since parts are pin guided so no tweaking is required.
Electric and pneumatic requirements:
  • Speed control by potentiometer 220 Volts, 60Hz, 10 Amps.
  • 5 CFM @ 80 psi.
