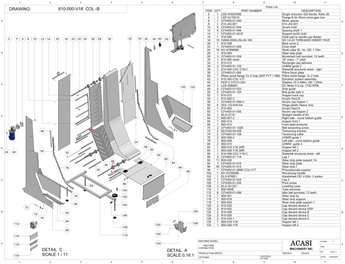

Waterfall cap feeder and sorter, model 810-000 V18, Assy 810-000-V18COL-B by Acasi Machinery Inc.

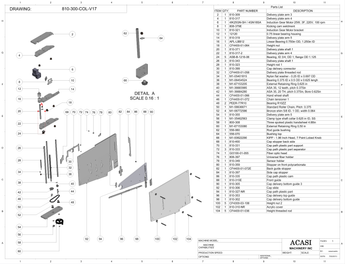

Waterfall cap feeder and sorter, model 810-000 V18, Assy 810-300-COL-V17, by Acasi Machinery Inc.

Acasi

Cap Feeder Model 810-000 Parts

Name: Cap Feeder Model 810-000 Parts
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

__________________________________________________

Option:

Cap chute (12000)

Item	Part No.	Part Name
2	LEE-W5200082	Single Reduction 520 Series, Ratio 26
4	LEE-G175210	Flange B For Worm Drive Gear Box
6	CF4400-01-040	Motor Spacer
8	810-JIG-001	810-JIG-001
10	CF4400-01-044	Acrylic Hold
12	CF4400-01-046	Spacing Shaft 1
14	CF4400-01-041E	Support Acrylic Hold
16	810-060	Hook Part To Handle Cap Feeder

Item	Part No.	Part Name
18	HANS-SSLK250-20-165	SS 1/4-20 THREADED INSERT RIVE
20	810-008	Back Cover 2
22	CF4400-01-006	Drive shaft
24	M1-87856860	Shaft Collar ID: 1in, OD: 1.75in
26	810-054	Wear Strip Plate
28	CF4400-01-008	Movement Belt Sprocket, 12 Teeth
30	810-000 chain	18" Chain -1" Pitch
32	810-012	Rectangle Cap Deliverer

Item	Part No.	Part Name
34	CF4400-01-120	UHMW Guide 2
36	810-004-COL-V18-C	Waterfall Structural Sheet-Right
38	CF4400-01-060	Pillow Block Plate
40	Pillow block flange 1in 2 hole (SKF-FYT 1 RM)	Pillow Block Flange 1in2 hole
42	810-300-COL-V17	Elevation System Assembly
44	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
46	LEE-098000	DC Motor 0.5 Hp, 1750 RPM.
48	CF4400-01-020	Side Guide

Item	Part No.	Part Name
50	CF4400-01-124	Belt Gude Right 3
52	810-010	Hopper Back Cap
54	810-062-C	Acrylic Fixed B
56	CF4400-01-089-C	Acrylic Cap Hopper 1
58	SOL-VG-634-AA	Hinge Plastic Heavy Duty
60	CF4400-01-092	Acrylic Cap Hopper 2
62	ELS-37101	Straight Handle
64	800-007-2	Right Side- Curve Bottom Guide

Item	Part No.	Part Name
66	800-014	Hopper Front 1
68	800-012	Front Plate Protector
70	CF4400-01-132E	Belt Tensioning Screw
72	BU7000-09-038	Tensioning Bracket
74	CF4400-01-128	Tensioning collar
76	800-006-2	UHMW Guide 1
78	800-009	Left Side- Curve Bottom Guide
80	800-010	UHMW Guide 4

Item	Part No.	Part Name
82	800-018 V18_MIR	Hopper Left 1
84	800-026 V18_MIR	Hopper Left 2
86	810-006-COL-V18-C	Waterfall Structural Sheet-Left
88	CF4400-01-116	Leg 1
90	800-016-UP	Wear Strip Support
92	800-030	Wear Strip Plate Support 1A
94	CF4400-01-016	Wear Strip Plate

Item	Part No.	Part Name
96	CF4400-01-014	Wear Strip 1
98	CF4400-01-086E-COL-V17	Polycarbonate Support
100	M1-03785995	Revolving Handle
102	ELS-978621	Handwheel OD: 4.92in, 2 spoke
104	CF4300-01-034	Leg 2
106	CF4300-01-030	Pivot screw
108	ELS-301251	Levelling Base
110	800-500E	Tube Structure

Item	Part No.	Part Name
112	CF4400-01-096	Idler Belt Sprocket , 12 Teeh
114	800-021	Wear Strip tip
116	800-016	Wear Strip Support
118	800-024	Wear Strip Plate Support 1
120	810-030	Cap Discard Device A
122	810-052	Cap Discard Device HDP
124	810-028	Cap Discard Device B
126	810-026	Cap Discard Device C
128	810-032-1	Cap Discard Device D
130	800-018 V18	Hopper Left 1
132	800-026 V18	Hopper Left 2
