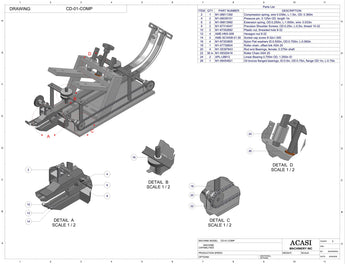

Cap Delivery Model CD-01-COMP

Request a Quote

Option:

Cap delivery (CD-01) | Cap delivery (CD-03) | Cap delivery (CD-21)

Manufactured Parts | Components

Item	Part No.	Part Name	Price
2	M1-06811392	Compression spring, wire 0.039in, L:1.5in, OD: 0.360in
4	M1-06039101	Pressure pin, 0.125in OD, length 1in
6	M1-06813992	Extension spring, OD:0.250in, L:1.000in, wire: 0.033in
8	M1-67314047	Precision Shoulder Screws, OD:0.25in, L:0.5in, thread 10-32
10	M1-67352682	Plastic nut, threaded hole 8-32
12	AME-HNX-008	Hexagon nut 8-32
14	AME-SCX008-01.00	Socket cap screw 8-32x1.000
16	M1-67353805	Nylon Flat washers ID:0.500in, OD:0.750in, L:0.062in

Item	Part No.	Part Name	Price
18	M1-07739824	Roller chain, offset link ASA 25
20	M1-35397843	Rod end Bearings, female, 0.375in shaft
22	M1-59320416	Roller Chain ASA 25
24	APL-LBB12	Linear Bearing 0.750in OD, 1.250in ID
26	M1-06454821	Oil bronze flanged bearings, ID:0.5in, OD:0.75in, flange OD:1in, L:0.75in
