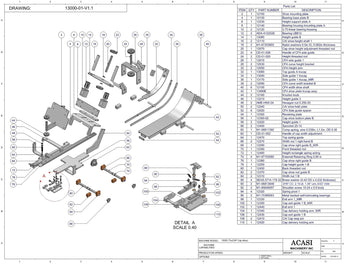

Cap Chute Model 13000


Option:

Cap chute (11000) | Cap chute (13000)

Item Part No. Part Name Price
2

12150

Shoe mounting plate
4 12130 Bearing base plate B
6 12230 Height support plate A
8 12140 Bearing housing mounting plate A
10 12120 0.75 linear bearing housing
12 ADA-A122026 Bearing LBB12
14 12080 Height guide B
16 12110 CAI shoe height shaft 1
Item Part No. Part Name Price
18 M1-67353805 Nylon washers 0.5in ID, 0.062in thickness
20 12070 Cap shoe height adjustment threaded rod
22 CD-01-026 Handle of CF4 side guide
24 CD-01-020 Height threaded rod
26 12010 CF4 side guide 1
28 12030 CF4 curve height bracket
30 12050 CF4- height arm
32 13080 Top guide A trucap
Item Part No. Part Name Price
34

13040

Side guide 1 trucap
36

13170

Side guide 1 trucap_MIR
38

12090

CF4 curve width bracket B
40 12100 CF4 width shoe shaft
42 13480E CF4 shoe plate trucap assy
44 12160 Knurled Knob
46 12210 Height guide 3
Item Part No. Part Name Price
48

AME-HNX-04

Hexagon nut 0.250-20
50 12240 CAI  shoe hold plate
52 12020 CF4 Side guide spacer
54 12300 Receiving plate
56 12360-02 Cap shoe bottom plate B
58 12220 Height guide 1
60 M1-06811392 Comp spring, wire 0.039in,L1.5in, OD 0.36
Item Part No. Part Name Price
62

CD-01-052

Handle of cap width adjustment
64 12470 Top spring guide
66 12270 Width nut 1 right hand B
68 12290 Cap shoe right guide B_MIR
70 12390 Front threaded rod
72 12460 Height rectangle spring acting
74 M1-67153080 External Retaining Ring 0,50in
76 12380 Cap shoe right guide B
Item Part No. Part Name Price
78

 12250

Cap height guide 1-B
80 12450 Back threaded rod
82 12370 Cap shoe rod guide B
84 12310 Width nut 1 B
86 12400 Sprocket 25-14
88 SEAS-5714-178-32 Brass washer (0.24 OD x 0.032 thickness)
90 M1-06813646 3/16" OD, 2.16 Lb, 1.06" Len, 0.02" Wire Diam Spring
92 M1-85646057 Shoulder screw 10-24 x 0.5 body
94 12320 Spring pivot 1
Item Part No. Part Name Price
96

 M1-75368563

Metal backed self-lubricating bearing
98 12330 Exit arm 1_MIR
100 12350 Cap exit guide 1 B_MIR
102 12440 Exit arm 1
104 12340 Cap delivery holding arm_MIR
106 12430 Cap exit guide 1 B
108 12410 CAI Cap stop pin
110 12420 Cap delivery holding arm
