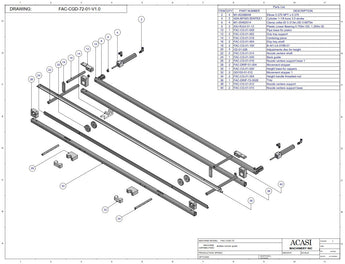

Bottles Center Guide 72" PI3100



Combinated System: Bottles Center Guide

48in | 60in | 72in

Item Part No. Part Name Price
2

M1-82288648

Elbow 0.375 NPT x 0.375

U$0.00
4 ADA-BF093.5DNTEE1

Cylinder 1-1/6 bore 3.5 stroke

U$0.00
6 M1-35462514 Clamp collar, ID 0.313in, OD 0.6875in U$0.00
8 IGU-RJUI-01-12 Plastic Linear Bearing 0.750in OD, 1.250in ID U$0.00
10 FAC-CG-01-008 Pipe base for piston U$0.00
12 FAC-CG-01-002 Drip tray support U$0.00
14 FAC-CG-01-018 Centering piece U$0.00
16 FAC-CG-01-004 Drip tray shaft U$0.00
Item Part No. Part Name Price
18 FAC-CG-01-100

B-AI-LA-0188-01

U$0.00
20 CD-01-026

Adjusments disc for height

U$0.00
22 FAC-CG-01-014 Nozzle centers shaft U$0.00
24 FAC-CG-01-030 Back guide U$0.00
26 FAC-CG-01-016 Nozzle centers support base 1 U$0.00
28 FAC-DRIP-01-004 Movement stopper U$0.00
30 FAC-CG-01-020 Height base for cappers U$0.00
32 GI3100-01-012 Movement stopper 1 U$0.00
34 FAC-CG-01-024 Height handle threaded rod U$0.00
36 FAC-DRIP-72-002E Tray U$0.00
38 FAC-CG-01-012 Nozzle centers support U$0.00
40 FAC-CG-01-010 Nozzle centers support base U$0.00
