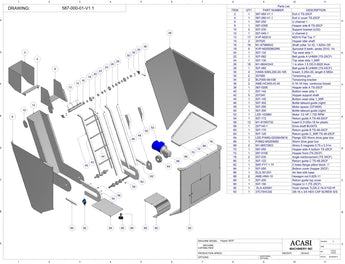

Bottle Unscrambler Trusort-48 / 60 / SO | Hoppers 25 CF
$ 0.00 USD
/
Hopper 15 CF | Hopper 25 CF | Hopper 35 CF | Hopper 100CF
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 |
587-060-V1.1 |
Exit U TS-25CF |
 |
| 4 | 587-260-V1.1 |
Exit U cover TS-25CF |
|
| 6 | 587-250 | U channel 1 | |
| 8 | 587-030E | Hopper side B TS-25CF | |
| 10 | 507-230 | Support bracket (U32) | |
| 12 | 507-040-1 | U channel 2 | |
| 13 | KVP-M2510 | M2510 Flat Top 1" | |
| 14 | 207020 | Hopper idler shaft | |
| 16 | M1-87986642 | Shaft collar 1in ID, 1.625in OD | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 18 |
KVP-M25S0802R6 |
Sprocket 8 teeth, series 2510, 1in |
|
| 20 | 507-132 |
Top wear strip 1 |
|
| 22 | 507-082 | Belt guide A UHMW (TS-25CF) | |
| 26 | M1-06043343 | 1 in shim 1.5 OD 0.0625 thick | |
| 28 | 507-080 | Belt guide B UHMW (TS-25CF) | |
| 30 | HANS-SSKL250-20-165 | Iinsert, 0.25in-20, length 0.580in | |
| 32 | 207080 | Tensioning pin | |
| 34 | 207090 | Tensioning bracket | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 36 |
AME-HCX05-03.00 |
5-16-18 Hex, continuos thread |
|
| 38 | 587-020E |
Hopper side A TS-25CF |
|
| 40 | 507-142 | Bottom wear strip 1 | |
| 42 | 207240 | Hopper support shaft | |
| 44 | 507-140 | Bottom wear strip 1_MIR | |
| 46 | 507-302 | Bottle takeuot guide (right) | |
| 48 | 507-290 | Motor spacer (CF4400) | |
| 50 | 507-300 | Bottle takeuot guide (right) | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 52 |
LEE-102860 |
Motor 1/2 HP,1.725 RPM |
|
| 54 | 507-172 |
Return guide A TS-48-25CF |
|
| 56 | M1-91093732 | Insert 0.3125in-18 for plastic | |
| 58 | 207140-1 | Drive shaft BU3070 | |
| 60 | 507-170 | Return guide B TS-48-25CF | |
| 62 | 507-120 | Return guide C_MIR TS-48-25CF | |
| 63 | AME-HCX06-00.75 | Hexagon cap screw 0.375-16x0.750 | |
| 64 | LEE-FHMQ-52026H5616 | Flange 520 Worm drive gear box | |
| 66 | FHMQ-W5200082 | Worm drive gear box | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 68 | M1-06572903 | Alnico 5 magnets 0,75 x 0,31in | |
| 70 | 587-050 | Hopper side A bottom TS-25CF | |
| 72 | 587-010E-B | Hopper front (TS 25CF) | |
| 78 | 557-230 | Angle reinforcement (TS 35CF) | |
| 80 | 507-122 | Return guide C TS-48-25CF | |
| 82 | SKF-FYT 1 TF | 2 holes flange pillow block, 1" | |
| 84 | 507-050 | Bottom cover (hopper 25CF) | |
| 86 | ELS-301251 | 4in feet with base | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 88 | AME-HNX-10 | Hexagon nut 0.625-11 | |
| 89 | 507-200 | Return guide top cover | |
| 90 | 507-190 | Hopper U-1 (TS 25CF) | |
| 92 | ELS-420081 | Hook clamps TLDS.Z-16.4/102+R | |
