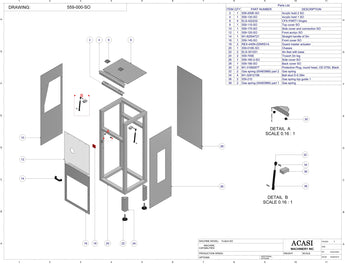

Bottle Unscrambler Model Trusort-SO | Structure


SECONDARY ORIENTATOR

Servo Belt System    SO Panel Control     SO Structure

Item Part No. Part Name Price
2

559-200E-30

Acrylic hold 2 SO

4 559-130-SO

Acrylic hold 1 SO

6 ELS-422232 CFA PART 1 hinges
8 559-110-SO Top cover SO
10 559-170-SO Side cover and connection SO
12 559-120-SO Front acrilyc SO
14 M1-82504721 Straight handle of 5in
16 559-140-SO Front cover SO
Item Part No. Part Name Price
18 REX-440N-Z2NRS1A

Guard master actuator

20 559-010E-SO Chassis
22 ELS-301251 4in feet with base
24 559-700E Trusor 3in leg
26 559-160-2-SO Side cover SO
28 559-190-SO Back cover SO
30 M1-31992977 Protective Plug, round head, OD 0750, Black
32 Gas spring (00483966) part 2 Gas spring
34 M1-32912198 Ball stud D-0.39in
36 559-210 Gas spring top guide 1
38 Gas spring (00483966) part 1 Gas spring
