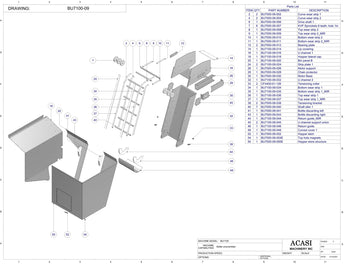

Bottle Unscrambler - Model BU7100 | Hopper 25 CF (BU7100-09)




STRUCTURE | ELECTRIC PANEL | BOTTLE TURNING | SPACING BELT | BOWL | BELT SYSTEM |  HOPPER 25 CF

Manufactured Parts | Components

Item Part No. Part Name Price
2

BU7000-09-002

Curve wear strip 1
4 BU7000-09-004 Curve wear strip 2
6 BU7000-09-006 Drive shaft 1
7 BU7000-09-007 KVP Sprockets 8 teeth, hole 1in
8 BU7000-09-008 Top wear strip 2
9 BU7000-09-009 Top wear strip 2_MIR
10 BU7000-09-010 Bottom wear strip 2
11 BU7000-09-011 Bottom wear strip 2_MIR
12 BU7000-09-012 Bearing plate
14 BU7100-09-014 Lip covering
16 BU7100-09-016 U channel 1
Item Part No. Part Name Price
18

BU7100-09-018

Hoppeer lateral cap

20 BU7100-09-020 Bin panel B
24 BU7100-09-024 Strip plate 1
26 BU7000-09-026  Motor support
28 BU7000-09-028 Chain protector
30 BU7000-09-030 Motor Base
32 BU7100-09-032 U channel 2
33 CF4400-01-128 Tensioning collar
34 BU7100-09-034 Bottom wear strip 1
Item Part No. Part Name Price
35 BU7100-09-035 Bottom wear strip 1_MIR
36

BU7100-09-036

Top wear strip 1

37 BU7100-09-037 Top wear strip 1_MIR
38 BU7000-09-038 Tensioning bracket
40 BU7000-09-040 Shaft idler 1
41 BU7000-09-041 Bottle discarding left
43 BU7000-09-043 Bottle discarding right
44 BU7100-09-044 Return guide_MIR
45 BU7100-09-045 U channel support union
46 BU7100-09-046 Return guide
48 BU7100-09-048 Curved cover 1
50E BU7000-09-050E Hopper store structure
52 BU7000-09-052 Hopper latch
54E BU7000-09-054E Top hole magnets
