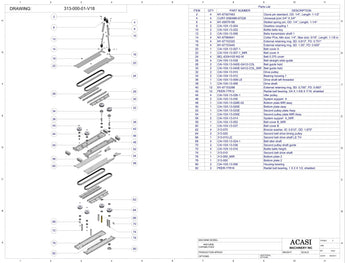

Bottle Belts System | Double belt V18

Request a Quote

Item	Part No.	Part Name	Price
2	M1-67927483	Clevis pin 0.25 x 1.5
4	CURT-SS648M/87226	Universal Joint 3/4 X 3/4
6	M1-09579186	Pressure pin, 0,25in OD, length 1.25 in
8	CAI-10X-13-004	Gearbox coupling 1
10	CAI-10X-13-022	Bottle belts key
12	CAI-10X-13-006	Belts transmision shaft 1
14	M1-67984641	Clevis pin
16	M1-67153320	External Retaining Ring 0.8125 in
18	M1-67153445	External Retaining Ring 1 in

Item	Part No.	Part Name	Price
20	CAI-10X-13-007-1	Belt cover A
22	CAI-10X-13-007-1_MIR	Belt cover A_MIR
24	BEL-630H100 NG-W	Bottle belt 630H100 0.375 covering
26	CAI-10X-13-038	Belt straight slide guide
28	CAI-10X-13-040E-GA12-COL	Belt guide hold
30	CAI-10X-13-040E-GA12-COL_MIR	Belt guide hold_MIR
32	CAI-10X-13-010	Drive pulley
34	CAI-10X-13-012	Bearing housing 1
36	CAI-10X-13-008-LE	Drive shaft left threaded
38	CAI-10X-13-008	Drive shaft
40	M1-67153288	External Retaining Ring 0.75 in

Item	Part No.	Part Name	Price
42	PEER-77R12	Bearing, 3/4 X 1-5/8 X 7/16, shielded
44	CAI-10X-13-026-1	Idler pulley
46	CAI-10X-13-030	System support A
48	CAI-10X-13-028E-02	Bottom plate MIR assy
50	CAI-10X-13-020E	Bottom plate assy
52	CAI-10X-13-033E	Second pulley plate Assy
54	CAI-10X-13-035E	Second pulley plate MIR Assy
56	CAI-10X-13-014	System support A_MIR
58	CAI-10X-13-052	Belt cover B_MIR
60	CAI-10X-13-037	Belt cover B

Item	Part No.	Part Name	Price
62	313-070	Bronze washer, ID: 0.812", OD: 1.875"
64	313-020	Second belt drive timing pulley
66	313-010-LE	Second belt drive shaft LE TH
68	CAI-10X-13-024-1	Belt idler shaft
70	CAI-10X-13-036	Second pulley shaft guide
72	CAI-10X-13-016	Bottle belts height
74	313-010	Second belt drive shaft
76	313-050_MIR	Bottom plate 2
78	313-050	Bottom plate 2
80	CAI-10X-13-056	Housing bearing
82	PEER-R16 ZZ	Bearing R16
