Automatic inline bottle cleaner with dry or wet cleaning options, model BR-15, Assy 975-200, by Acasi Machinery Inc.

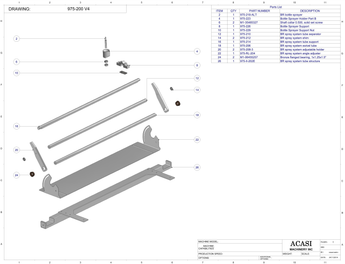

Automatic Inline Bottle Cleaner Model BR15 | Rinser System (975-200 V4)

TANK | RINSER SYSTEM | CLAMPING AND TURNING MECHANISM

Item	Part No.	Part Name
2	975-218-ALT	BR bottle sprayer
4	975-223	BR bottle sprayer holder part B
6	M1-35465327	Shaft collar 0.375, solid set screw
8	975-226-B	Bottle Sprayer Support
10	975-229	Bottle Sprayer Support Nut
12	975-210	BR spray system tube separator
14	975-212	BR spray system shim
16	975-214	BR spray system Tube Support
18	975-206	BR spray system Swivel Tube
20	975-208-3	BR spray system Adjustable Holder
22	975-RL-204	BR spray system Angle Adjuster
24	M1-06455257	Bronze Flanged Bearing, 1x1.25x1.5
26	975-II-202E	BR spray system Tube Structure

Automatic Inline Bottle Cleaner Model BR15 | Rinser System (975-200 V4)
