Automatic Inline Bottle Capping Machine with Vibratory Cap Feeder Model TruCap-X-Vib Videos


ACASI Inline Bottle Capper with Vibratory Cap Feeder
Model TruCap-X-Vib

Starting Prices:

           4 spindle in line capper with vertical wheel cap sorter:
           6 spindle in line capper with vertical wheel cap sorter:
           8 spindle in line capper with vertical wheel cap sorter:

Tightener Features:

  • Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
  • Heavy duty linear carriage system for height adjustability.
  • All shafts and threaded rods manufactured in 304 stainless steel.
  • Heavy duty casters standard.
  • No change of parts needed for a wide range of containers.
  • Front covers with safety interlock switches standard.
  • Top driven to insure no product spillage into drive assembly.
  • Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment).
Capping discs features:
  • 4, 6, or 8 spindle configurations available, single gear box driven.
  • Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
  • Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased).
  • Clutches located away from capping discs to avoid corrosion.
  • Heavy duty gear driven mechanism, no belts used for power transmission.
  • Adjustable speed 3/4 Hp drive motor for capping discs.
  • Optional second drive motor to rotate the first set of capping discs on the opposite direction.
  • Capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials.
  • Independent adjustment for front or back capping discs.
  • Capping disc position is adjustable while the machine is running, without opening the safety covers.
  • Fully adjustable for cap sizes ranging from 8 mm to 130 mm in diameter.
Bottle belts features:
  • Bottle belt width adjusted via front knobs.
  • Bottle belt height adjusted via front knobs.
  • Heavy duty gear drive mechanism, no belts used for power transmission.
  • Adjustable speed heavy duty 1/2 Hp, motor gearbox.
  • Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers. Optional double belt assembly with independent height and angle adjustment.
  • Optional double belt assembly with independent heifht and angle adjustment.

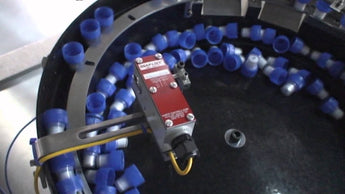

Vibratory cap feeder features:

  • Aluminum casting with polyuretrane liner to minimizes cap markings-scratching.
  • 24-32 inch diameter feeding disc - ramp assembly.
  • Bad caps rejected mechanically, minimum air usage.
  • Cap by deman controlled by photoelectric sensor.
  • Bowl tooled for one model cap.
  • Adjustable vibration and speed control.
  • Heavy duty extra heavy base for better vibration transmission.
  • Sortes mounted on machine, no need for independent height adjustment.
  • Includes filter pressure regulator.
  • Flow controls on all air hoses.



    Cap hopper feature:

    • 3 Cubic feet stainless steel deposit.
    • Vibrator with independent control mounted on cap hopper.
    • Low friction limit switch for cap level sensing on centrifugal cap feeder.

    Electric and pneumatic requirements:

    • 220 Volts, Single phase, 50/60Hz, 15 Amps.
    • 10 CFM @ 80 p.s.i.
