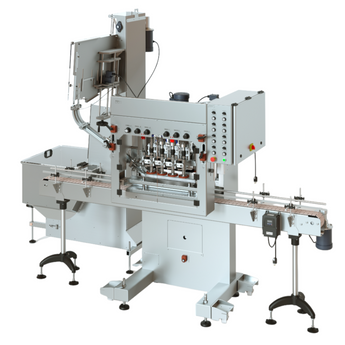

Automatic Inline Bottle Capping Machine Model TruCap-X-WFall


ACASI Inline Bottle Capper with Waterfall cap feeder
 Model TruCap-X-WFall
Starting Prices:
 4 spindle in line capper with centrifugal cap sorter:
 6 spindle in line capper with centrifugal cap sorter:
 8 spindle in line capper with centrifugal cap sorter:

Tightener Features:

  • Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
  • Heavy duty linear carriage system for height adjustability
  • All shafts and threaded rods manufactured in 304 stainless steel
  • Heavy duty casters standard
  • No change of parts needed for a wide range of containers
  • Front covers with safety interlock switches standard
  • Top driven to insure no product spillage into drive assembly
  • Adjustable height to accommodate containers from 1 inch to14 inches tall (Optional power height adjustment).

Capping discs features:

  • 4, 6, or 8 spindle machine configurations available, single gear box driven
  • Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
  • Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
  • Clutches located away from capping discs to avoid corrosion
  • Heavy duty gear driven mechanism, no belts used for power transmission
  • Adjustable speed 1/2 Hp drive motor for bottle capping discs
  • Optional second drive motor to rotate the first set of capping discs on the opposite direction
  • Capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials
  • Independent adjustment for front or back capping discs
  • Capping disc position is adjustable while the machine is running, without opening the safety covers.
  • Fully adjustable for bottle cap sizes ranging from 8 mm to 130 mm in diameter

Bottle belts features:

  • Bottle belt width adjusted via front knobs
  • Bottle belt height adjusted via front knobs
  • Heavy duty gear drive mechanism, no belts used for power transmission.
  • Adjustable speed heavy duty 1/2 Hp, motor gearbox
  • Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.
  • Optional double belt assembly with independent height and angle adjustment

Waterfall feeder features:

  • Construction in stainless steel
  • 18 inch wide belt
  • Cap feeder is adjustable for bottle caps from 8mm to 110mm in diameter, via quick adjust knobs
  • Caps feed on demand, controlled by photoelectric sensor
  • Air shutoff valve controlled by photoelectric sensor
  • Includes air regulator and filter
  • Feeder inclination adjustable from 0 to 5 degrees
  • Complete height adjustment by structure 1 inch bolts and/or cap delivery system.
  • 10 cubic foot cap hopper
  • Drive provided by DC gear motor.
  • Independent Speed Control (potentiometer)

Electric and pneumatic requirements:

  • 220 Volts, Single phase, 50/60Hz, 15 Amps.
  • 10 CFM @ 80 p.s.i.
