5 Oz Sanitary Piston

$ 1,900.00



SANITARY PISTON

Sizes availables:

2.5oz | 5oz | 10oz | 20oz | 34oz | 170oz

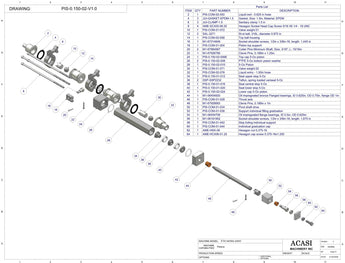

Item Part No. Part name Price
2 PIS-COM-02-050 Liquid exit - 0.625 in hose
4 JUI-GASKET-EPDM-1.5 Gasket, Size: 1.5in, Material: EPDM
6 JUI-CLAMP-1.5 Sanitary clamp 1.5 in
8 AME-SCX05-06.25 Hexagon Socket Head Cap Screw 5/16 X6 1/4
10 PIS-COM-01-072 Valve weight 01
12 SAL-3271 St-st ball, 316L, diameter 0.875 in
14 PIS-COM-02-058 Top ball housing
16 M1-67314849 Socket shoulder screws, 1/2in x 3/8in-16
18 PIS-COM-01-004 Piston top support
20 M1-67984567 Cotter Pins Minimum Shaft, Size: 3/16"
22 M1-67926766 Clevis Pins, 0.188in x 1.25in
24 PIS-0.150-02-006E Top cap 5-Oz piston
26 PIS-0.150-02-008 PTFE 5-Oz bottom piston washer
28 PIS-0.150-02-010 5-Oz Piston
30 PIS-COM-01-071 Valve weight 02
32 PIS-COM-02-076 Liquid entry - 1.00in hose
34 PIS-0.150-01-012 Seal upper stop 5-Oz
36 SSP-SSP2232 Teflon seal for 5-Oz piston
38 PIS-0.150-01-016 Seal central stop 5-Oz
40 PIS-0.150-01-020 Seal lower stop 5-Oz
42 PIS-0.150-02-024 Lower cap 5-Oz piston
44 M1-06454920 Oil impregnated bronze Flanged bearings
46 PIS-COM-01-028 Thrust axis
48 M1-67926683 Clevis Pins, 0.188in x 1in
50 PIS-COM-01-034 Pivot shaft drive
52 PIS-COM-01-036 Support individual filling graduation
54 M1-06454706 oil impregnated flange bearings, ID 0.5in, OD 0.625in, flange OD 0.875in
56 M1-06181952 Socket shoulder screws, 1/2in x 3/8in-16
58 PIS-COM-01-042 Stop fulling individual support
60 PIS-COM-01-044 Individual graduation cap
62 AME-HNX-06 Hexagon nut 0.375-16
64 AME-HCX06-01.25 Hexagon cap screw 0.375-16x1.250
