2.5 Oz Sanitary Piston

$ 1,750.00



SANITARY PISTON

Sizes availables:

2.5oz | 5oz | 10oz | 20oz | 34oz | 170oz

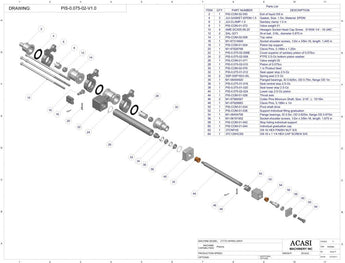

Item Part No. Part name Price
2 PIS-COM-02-050 Liquid exit - 0.625 in hose
4 JUI-GASKET-EPDM-1.5 Gasket, Size: 1.5in, Material: EPDM
6 JUI-CLAMP-1.5 Sanitary clamp 1.5 in
8 PIS-COM-01-072 Valve weight 01
10 AME-SCX05-06.25 Hexagon Socket Head Cap Screw 5/16 X6 1/4
12 SAL-3271 St-st ball, 316L, diameter 0.875 in
14 PIS-COM-02-058 Top ball housing
16 M1-67314849 Socket shoulder screws, 1/2in x 3/8in-16, length: 1,445 in
18 PIS-COM-01-004 Piston top support
20 M1-67926766 Clevis Pins, 0.188in x 1.25in
22 PIS-0.075-02-006E Cover superior of sanitary piston of 0.075cc
24 PIS-0.075-02-008 PTFE 2.5-Oz bottom piston washer
26 PIS-COM-01-071 Valve weight 02
28 PIS-0.075-02-010 Piston of 0.075cc
30 PIS-COM-02-076 1 in Product feed
32 PIS-0.075-01-012 Seal upper stop 2.5-Oz
34 SSP-SSP1623-SIL Spring seal 2.5 Oz
35 M1-06454920 Flanged bearings, ID 0.625in, OD 0.75in, flange OD 1in
36 PIS-0.075-01-016 Seal central stop 2.5-Oz
38 PIS-0.075-01-020 Seal lower stop 2.5-Oz
40 PIS-0.075-02-024 Lower cap 2.5-Oz piston
44 PIS-COM-01-028 Thrust axis
46 M1-67984567 Cotter Pins Minimum Shaft, Size: 3/16", L: 15/16in
48 M1-67926683 Clevis Pins, 0.188in x 1in
50 PIS-COM-01-034 Pivot shaft drive
52 PIS-COM-01-036 Support individual filling graduation
54 M1-06454706 Flange bearings, ID 0.5in, OD 0.625in, flange OD 0.875in
56 M1-06181952 Socket shoulder screws, 1/2in x 3/8in-16, lenght: 1.675in
58 PIS-COM-01-042 Stop fulling individual support
60 PIS-COM-01-044 Individual graduation cap
62 37CNFHS 3/8-16 Hex Finish Nut S/S
64 37C125HCSS 3/8-16 1 1/4 Hex Cap Screw S/S
