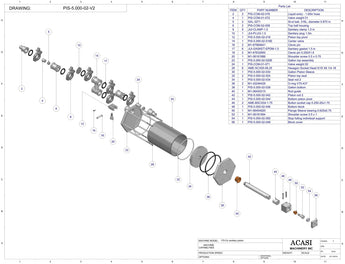

SANITARY PISTON
2.5oz | 5oz | 10oz | 20oz | 34oz | 170oz
| Item | Part No. | Part name | Price |
| 2 | PIS-COM-02-076 | Liquid entry - 1.00in hose |  |
| 4 | PIS-COM-01-072 | Valve weight 01 | |
| 5 | SAL-3271 | St-st ball, 316L, diameter 0.875 in | |
| 6 | PIS-COM-02-058 | Top ball housing | |
| 8 | JUI-CLAMP-1.5 | Sanitary clamp 1.5 in | |
| 10 | JUI-PLUG-1.5 | Sanitary plug 1.5in | |
| 12 | PIS-5.000-02-018 | Piston top pivot | |
| 14 | PIS-5.000-02-016E | Center valve | |
| 16 | M1-67984641 | Clevis pin | |
| 17 | JUI-GASKET-EPDM-1.5 | Sanitary gasket 1.5 in | |
| 18 | M1-67632950 | Clevis pin 0.250X1.6 |
|
| 20 | M1-06181986 | Shoulder screw 0.5 x 0.75 | |
| 22 | PIS-5.000-02-020E | Gallon top assembly |
|
| 24 | PIS-COM-01-071 | Valve weight 02 |
|
| 28 | AME-SCX05-06.25 | Hexagon Socket Head 5/16 X6 1/4-18 |
|
| 30 | PIS-5.000-02-030 | Gallon Piston Sleeve |
|
| 32 | PIS-5.000-02-024 | Piston top seal |
|
| 34 | PIS-5.000-02-034 | Seal rod 2 |
|
| 36 | M1-02246429 | O-ring V70-437 |
|
| 38 | PIS-5.000-02-038 | Gallon bottom |
|
| 40 | M1-06455315 | Rod guide | |
| 42 | PIS-5.000-02-042 | Piston rod 2 | |
| 44 | PIS-5.000-02-044 | Bottom piston pivot | |
| 46 | AME-BSCX04-1.75 | Button socket cap 0.250-20x1.75 | |
| 48 | PIS-5.000-02-046 | Bottom block | |
| 50 | M1-06454920 | Flange Sleeve bearing 0.625x0.75 |
|
| 52 | M1-06181994 | Shoulder screw 0.5 x 1 |
|
| 54 | PIS-5.000-02-050 | Stop fulling individual support |
|
| 56 | PIS-5.000-02-048 | Block cover | |
