Straight Conveyors

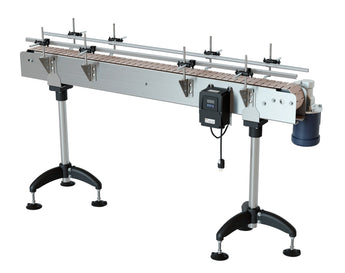

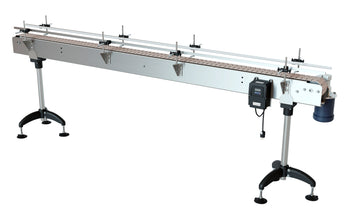

Conveyor 6 Ft        Conveyor 10 Ft

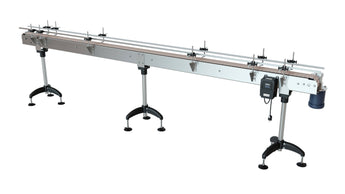

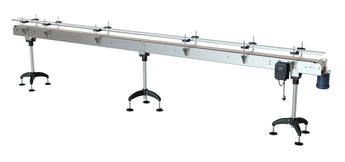

Conveyor 13 Ft      Conveyor 16 Ft

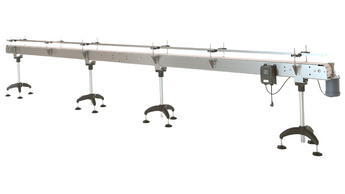

Conveyor 20 Ft

Acasi machinery manufactures standard conveyors for all our machines as well as custom conveyors for all of our customers.

All of our conveyors are manufactured in stainless steel and have tool-less guide rail adjustments. We stock 4.5 and 7.5 inch straight conveyors in 6, 10, 13, 16 and 20 feet lengths.

4.5 in. Standard Features:
  • 304 stainless steel construction.
  • Acetyl 4.5 inches straight running chain.
  • 1/2 HP AC motor.
  • Variable speed drive installed in filling machine electric panel.
  • Variable speed control mounted on conveyor for independent conveyors.
  • Tripod bottom supports with height adjustability.
  • One set of tool less guide rails.

7.5 in. Standard Features:

  • 304 stainless steel construction.
  • Acetyl 7.5 inches straight running chain.
  • 1/2 HP AC motor.
  • Variable speed drive installed in filling machine electric panel.
  • Variable speed control mounted on conveyor for independent conveyors.
  • Tripod bottom supports with height adjustability.
  • One set of tool less guide rails.

Electric Requirements:

  • 110 Volts, 60Hz, 10 Amps.
  • Not applicable for conveyors wired into a filler control panel.
