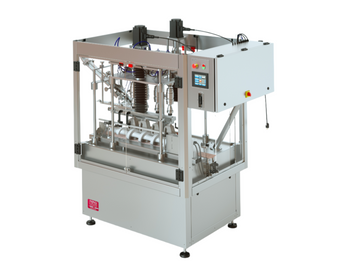

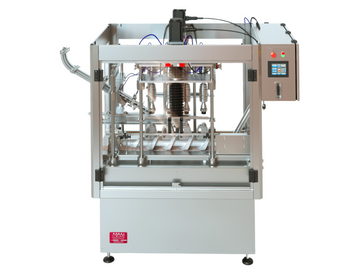

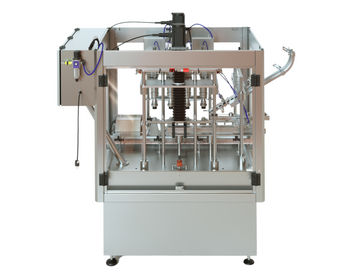

Chuck Bottle Capper Servo Model CC-IL-4

Capper features:

•High-precision, electrically-driven ball screw movement, faster and more precise than pneumatic or air over oil systems.

 • Machine designed to place plastic or metal caps on a wide range of containers – enclosures.

• Acasi magnetic clutch capping head model MJ90 (Magnetic with Jaws), visual torque setting for ease of adjustment, manufactured in 304 stainless steel.

• Pick and place mechanism in stainless steel. Cap is delivered to the chuck, then the chuck comes down holding the cap (This prevents cross-threading)

• Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request)

• Automatic start and stop with presence or absence of containers.

• Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).

• Stainless steel electric enclosure.

• Heavy duty 304 Stainless steel welded frame.

• Stainless steel enclosure with polycarbonate windows and safety switches.

• All shafts from ¼ to 2.5 inches are manufactured in 304 stainless steel.

• Infeed Screw System With Stepper Motor

Cap chute features:

• All contact parts in stainless steel

• Designed and tested for each cap to avoid jamming.

• Includes cap demand sensor to start and stop the cap feeder.

•Stepper Motor With 200 steps per revolution, bipolar

Electric and pneumatic requirements:
• 220 Volts, 60Hz, 15 Amps.
• 5 CFM @ 80psi
